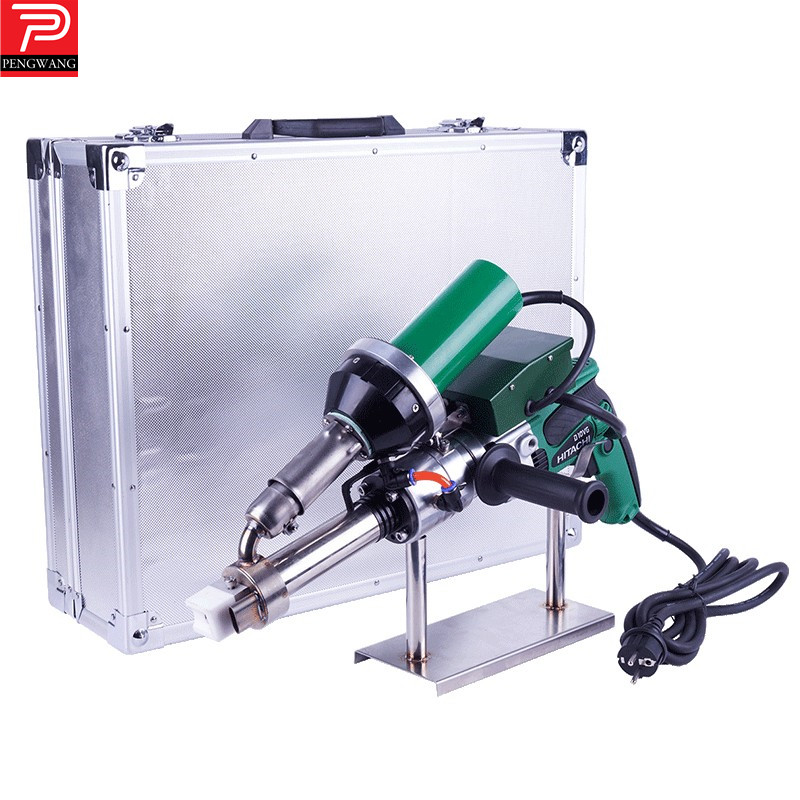

Pengwang PW603A Hitachi Extruder Extrusion Welder
Hot air power: 1600W Motor power: 800W Voltage: 220V Frequency: 50Hz Extruding temperature: 200-300℃ Hot air temperature: 20-600℃ Welding speed: 1.8-3.6Kg.h Welding rod diameter: Φ3-4.5mm N.W.: 11.5kg; G.W.:14.5kg Insulation grade: Class I
Japanese Motor Automation Plastic Extrusion Welding Gun with Screw and Barrel

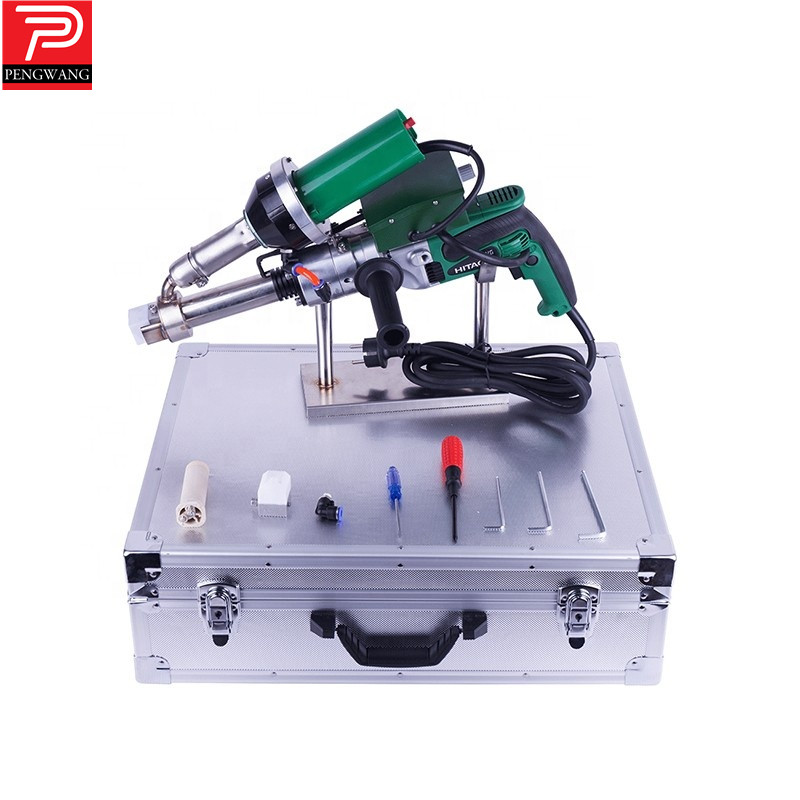

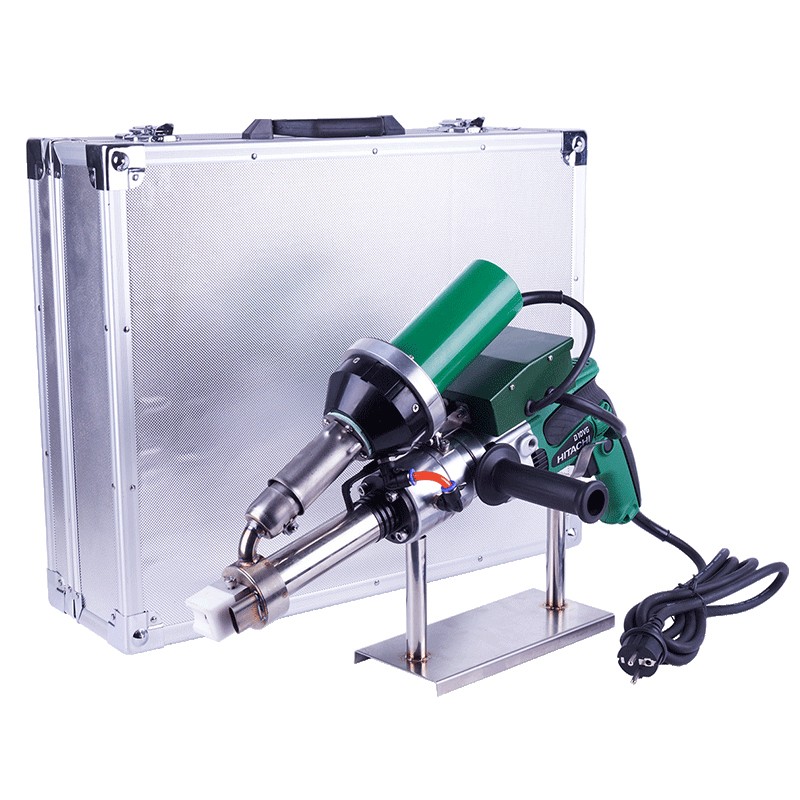

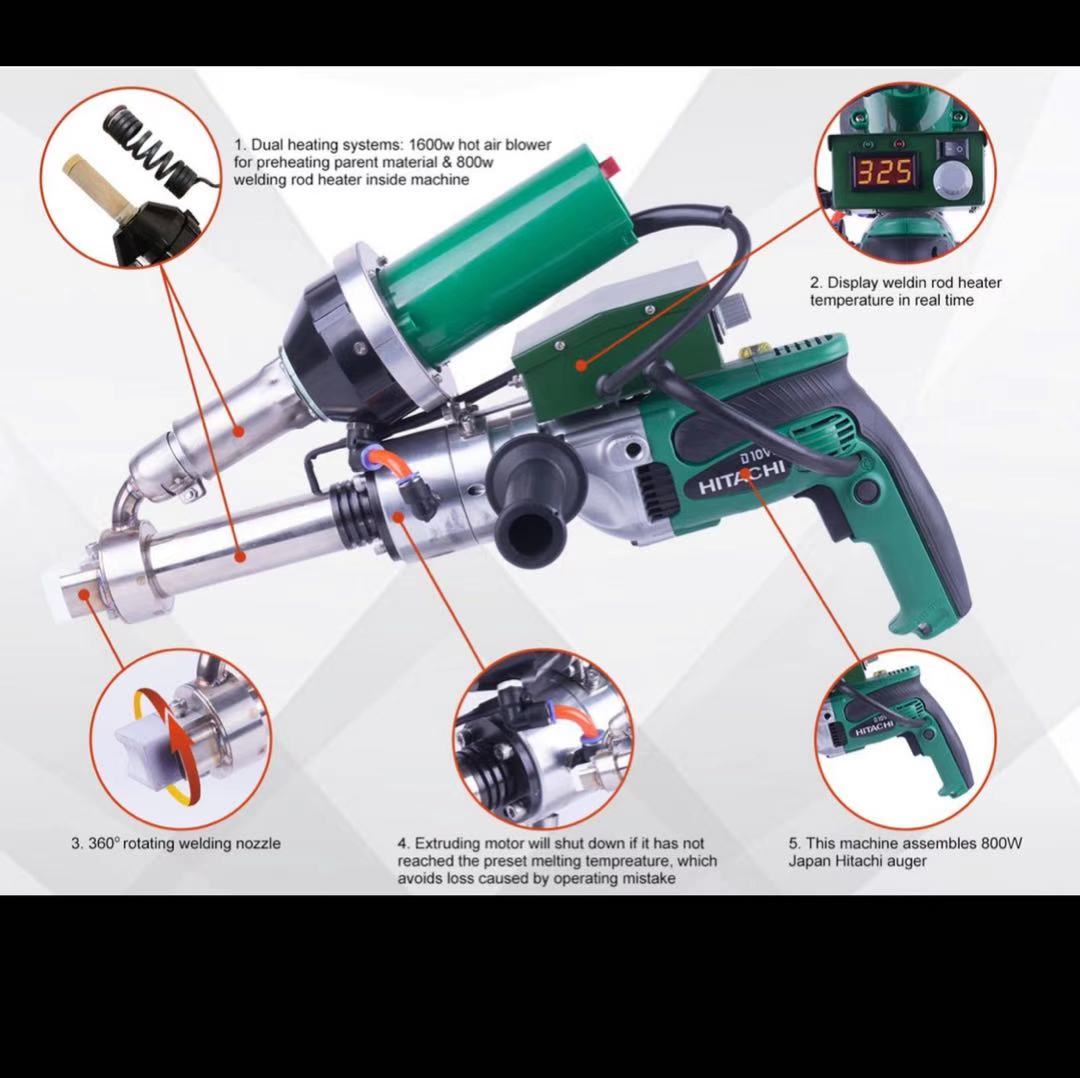

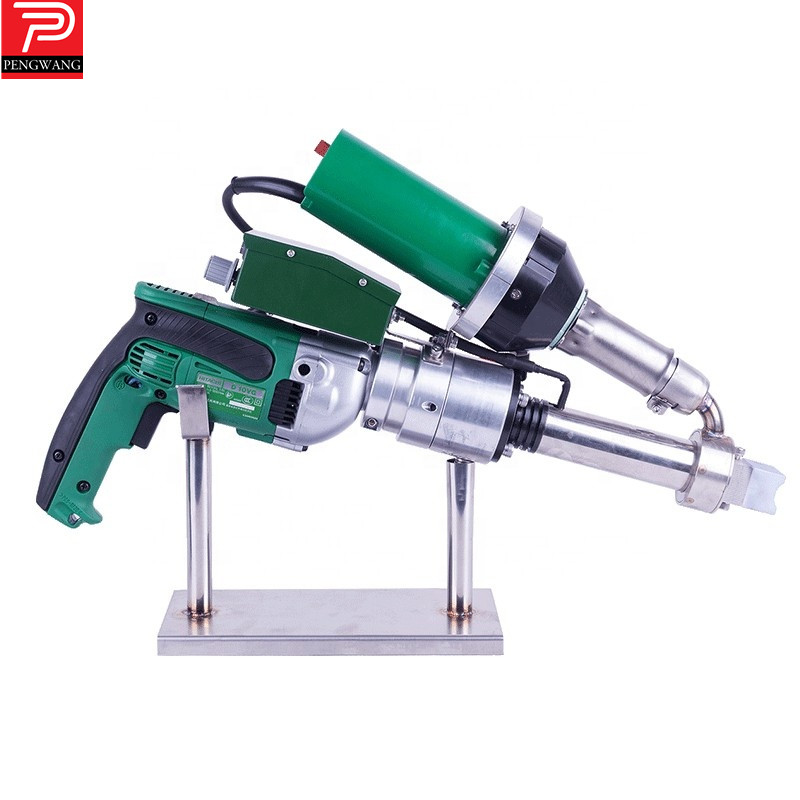

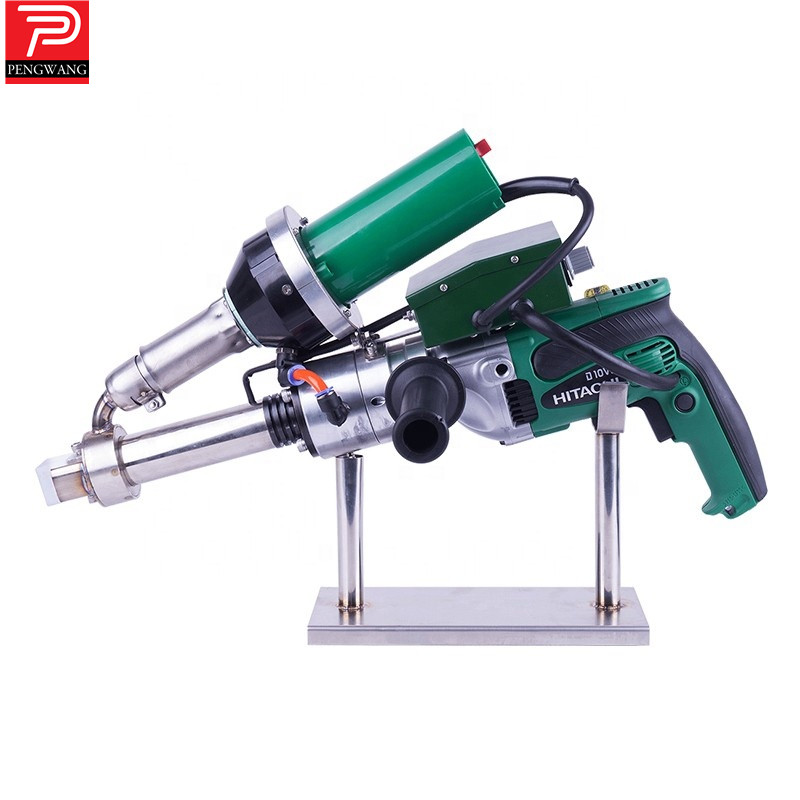

PW603A hand extrusion welding gun with the functions of double independent heating systems, digital display controller, PID automatic thermostat. Also with 1600W hot air welding gun and Japanese HITACHI 800W motor, so this welder has high working efficiency and strong drive-force. It can be used for narrow gap welding and corners welding where are hard to reach.
Tips:
a. This welder start to weld when the temperature up to 260°c.
b. This welder is welded with HDPE PE or PP welding rod Φ3.0--Φ5.0mm.
c. Any customized demands, you can ask us directly. We have professional technicians team.
➪Related product: PW602A Metabo Double Heating Extruder
❒Difference between PW602--Metabo, PW604--Orange and PW603--Hitachi Extruder:
1. The biggest advantage of orange model is that the main body is durable, normally it will not have any failures, also equipped with spare carbon brushes. Hitachi and Metabo doesn't equipped with carbon brushes.
2. Metabo extrusion welder, adopts imported Omron temperature control module & customized professional blades, so it won't have any issue during long work.
➪Related product: PW604 Orange Double Heating Extruder
Tips:
a. This welder start to weld when the temperature up to 260°c.
b. This welder is welded with HDPE PE or PP welding rod Φ3.0--Φ5.0mm.
c. Any customized demands, you can ask us directly. We have professional technicians team.
PW604 Orange Double Heating Extruder▼
Brand & Type | PW604 Hitachi double heating extruder |
Certificate | CE/RoHS |
Voltage | 220V/110V |
Motor power | 800W |
Hot air power | 1600W |
Frequency | 50/60Hz |
Hot air temperature | 20-600℃ |
Extruding temperature | 200-300℃ |
Welding speed | 500L/min |
Welding rod diameter | Φ3.5-5.0mm |
N.W. | 11.5kg |
G.W. | 14.5kg |
Insulation grade | Class Ⅰ |
Usage | Geomembrane welding |
Plug Standard | Euro Plug/ U.S. Plug/British Plug |
Japanese Motor Automation Plastic Extrusion Welding Gun with Screw and Barrel
PW603A hand extrusion welding gun with the functions of double independent heating systems, digital display controller, PID automatic thermostat. Also with 1600W hot air welding gun and Japanese HITACHI 800W motor, so this welder has high working efficiency and strong drive-force. It can be used for narrow gap welding and corners welding where are hard to reach.

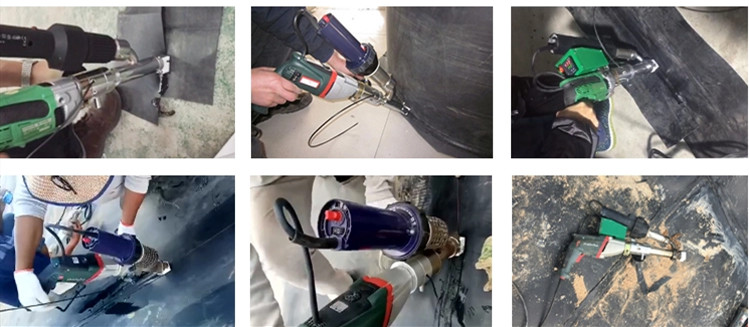

Pengwang Extrusion Welder is usually used for welding HDPE, PP, PVDF and other hot melt materials in projects like plastic water tanks, plastic pipes, containers, sheets etc, with light weight, stable performance, convenient operation, high welding efficiency, it will be very good for repairing or welding small area and corners.
