Powerful HDPE PP Hand Held Plastic Extruder with Omron temperature circuit board

PW604B is kind of automation plastic welding extruder which is independent research and development by Shanghai Pengwang Machinery Co., Ltd. Equip PW802 1600W hot air welding gun and Metabo 3400W motor, has high working efficiency and strong drive-force. It can be used for narrow gap welding and corners welding where are hard to reach.

❒Pengwang exported over 1000 sets of Metabo double heating extruder for overseas market, cause we have good reputation in internation market as good quality and price! The cost of Pengwang extruder is only need 1/6-1/7 of the European extruder!

❒The structure of the Pengwang Metabo extrusion welder uses import Omron temperature control circuit board and customized professional blade, so it won't have any issue during long time working. Any customization is welcome!

Tips:
☑ This welder start to weld when the temperature up to 260°c.

☑This welder is welded with HDPE PE or PP welding rod Φ3.0--Φ4.5mm.
☑ Any customized demands, you can ask us directly. We have professional technicians team.

➪Related product: PW602A Metabo Extruder

PW601 plastic extrusion welder pioneered the use of the function of double independent heating systems, digital display controller (JIT-603 & JIT-613), 360-degree rotating welding head, motor cold start protection,  which is applicable to welding PE,PP,HDPE and other hot melt materials. It can be used for narrow gap welding and corners welding where are hard to reach.

Tips

☑ Preheating  3-5   mins and  make previous welding flux soften, then using  tools to  pick out  the  softened  flux  before start work.

☑ This Hand Extruder is welded with PE/PP/HDPE welding rod Φ3.5-5.0mm, the welding speed is 1.8-3.6Kg/h.
☑ Any customized demands, you can ask us directly. We have professional technicians team.

Pengwang PW602A Metabo Extruder▼

➪Related product: PW603 Hitachi Double Heating Extruder

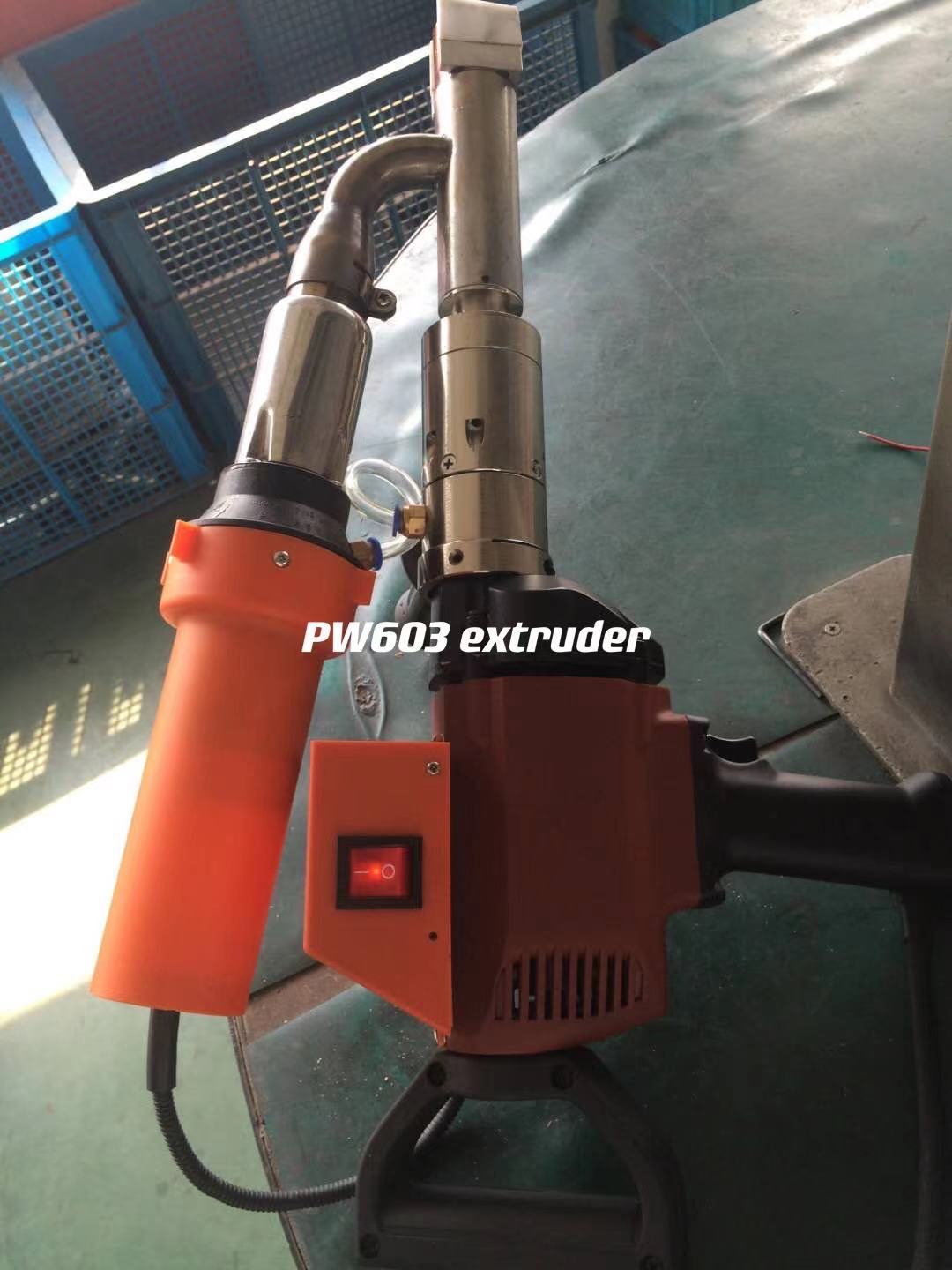

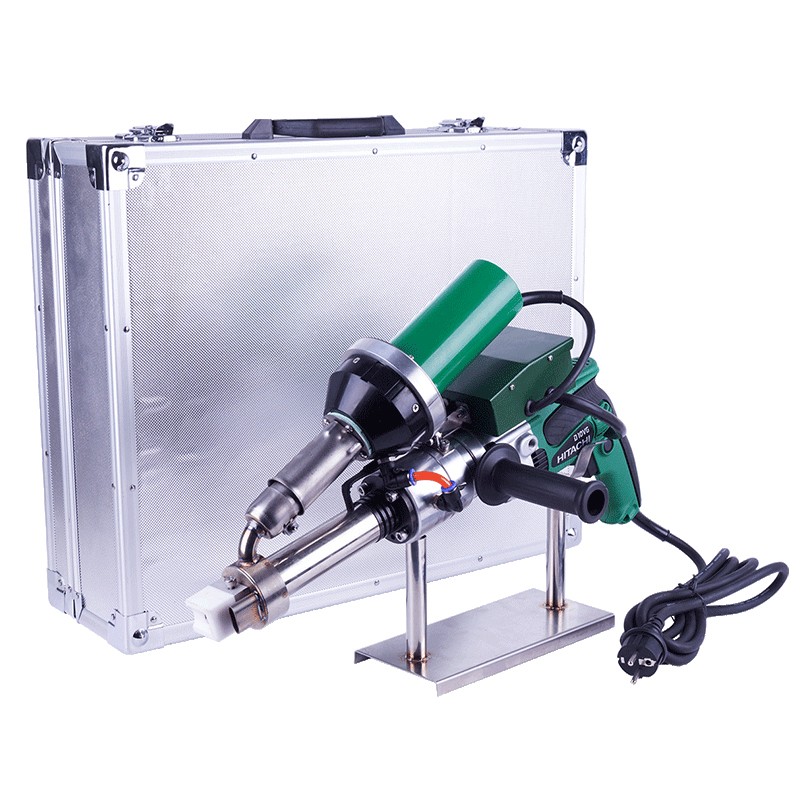

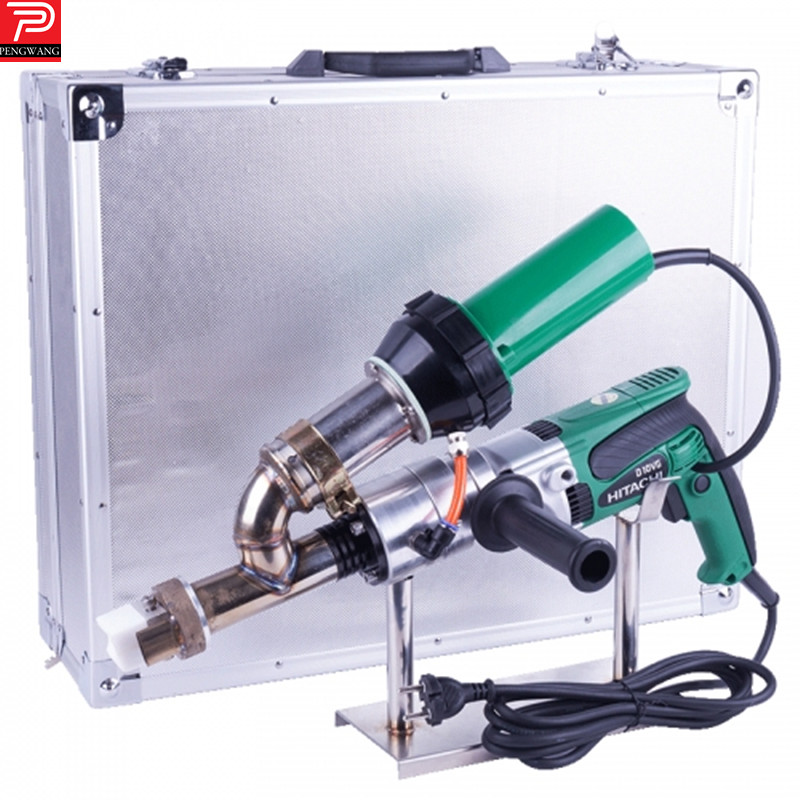

PW603 hand extrusion welding gun with the functions of double independent heating systems, digital display controller, PID automatic thermostat. Also with 1600W hot air welding gun and Japanese HITACHI 800W motor, so this welder has high working efficiency and strong drive-force. It can be used for narrow gap welding and corners welding where are hard to reach.

Tips:

a. This welder start to weld when the temperature up to 260°c.

b. This welder is welded with HDPE PE or PP welding rod Φ3.0--Φ5.0mm.
c. Any customized demands, you can ask us directly. We have professional technicians team.

Pengwang PW603 Hitachi Double Heating Extruder▼

➪Related product: PW604 Orange Double Heating Extruder

PW603 is kind of automation plastic welding extruder which is independent research and development by Shanghai Pengwang Machinery Co., Ltd. This welder has functions of double independent heating systems, digital display controller, PID automatic thermostat, with PW803 2000W hot air welding gun and our developed 1300W motor, has high working efficiency and strong drive-force. It can be used for narrow gap welding and corners welding where are hard to reach.

Tips:
a. This welder start to weld when the temperature up to 260°c.

b. This welder is welded with HDPE PE or PP welding rod Φ3.0--Φ5.0mm.
c.  Any customized demands, you can ask us directly. We have professional technicians team.

Pengwang PW604 Orange Double Heating Extruder▼
