PW202 Geomembrane Welder applicable for 1-3mm material
Power:1800W Voltage: 220V Frequency: 50Hz Welding speed: 0.5-5m/min Heating temperature: 0-800℃ Material thickness: 1-3mm Welding seal thickness: 17mm×2, Intermediate cavity:16mm Seam strength: ≥85% base material (tensial resistance in share direction Joint width: 120mm N.W.: 9kg; G.W.:14kg Insulation grade: I

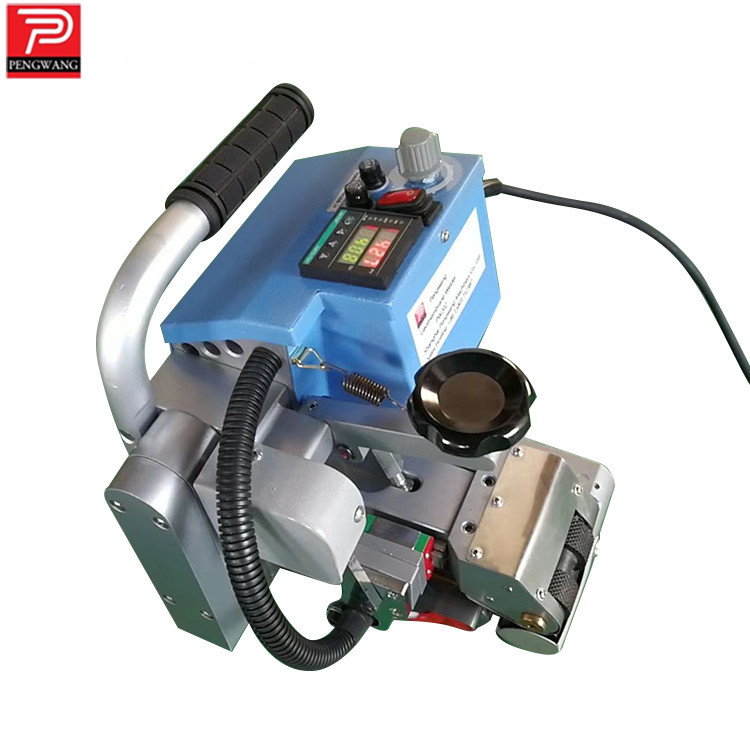

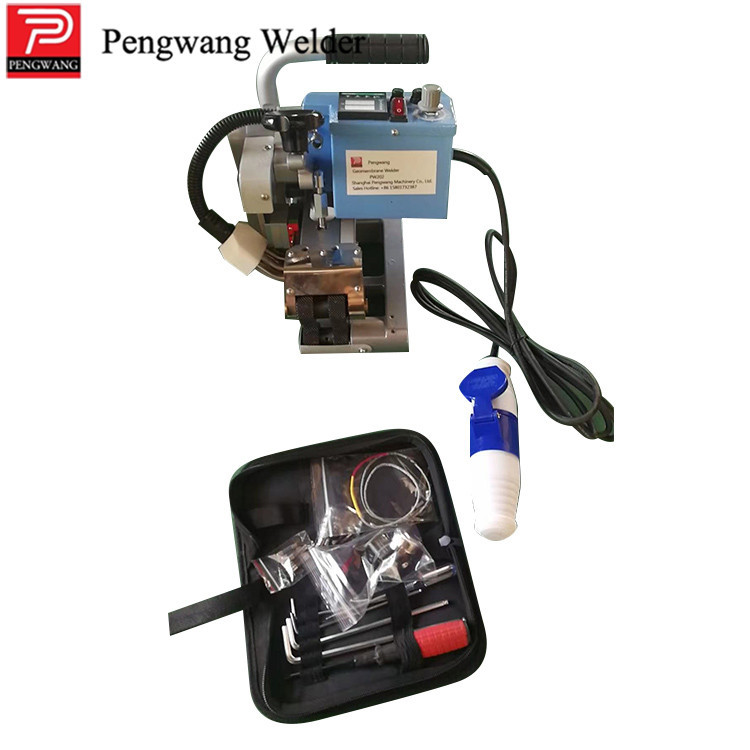

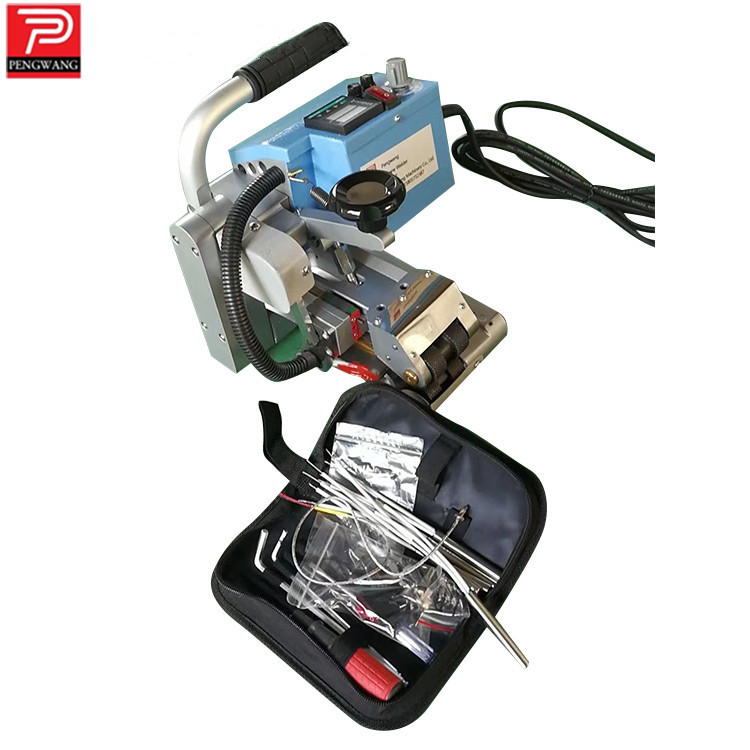

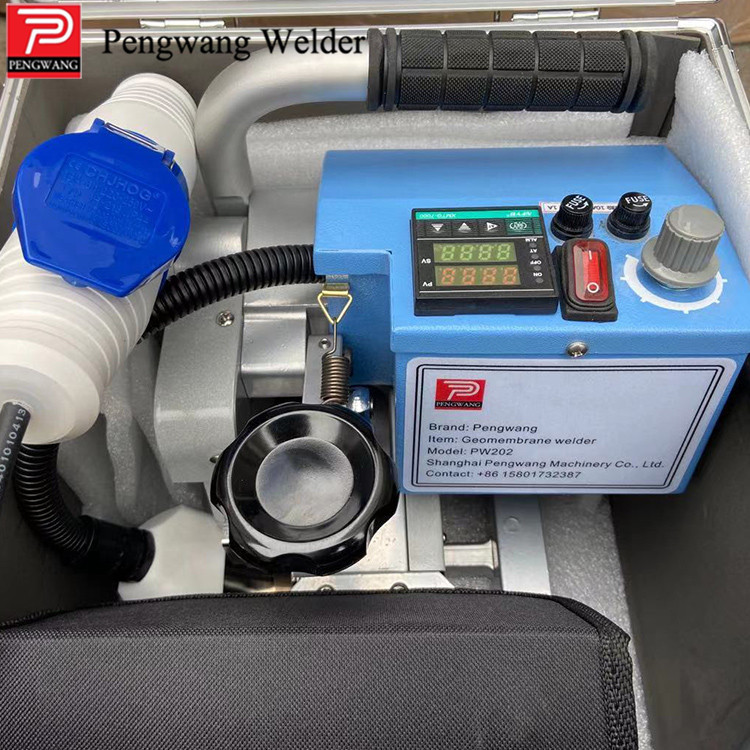

PW202 Portable Hot Wedge Climbing HDPE Gemembrane Seam Welder
Pengwang welder is your good option of waterproofing project in China, and save your cost from European/US transporter market!
❒Pengwang produces over 20000 geomembrane welder, extruder, hot air blower etc every year, so we have mature technology on the structure and system of it so we lead the world manufacturing of welder. Against on the geomembrane welder system, Pengwang produced the PW202 geomembrane welder which is the most advanced technology in the world.
❒PW202 is one of our newly developed products, which can weld geomembrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP etc. And it is excellent in performance and easy for operating, with high welding speed and good work quality. It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on.
Tips:
1. The silica pressure roller is suitable for welding membrane which the thickness below 0.5-2mm.
2. The steel pressure roller is suitable for welding membrane which the thickness between 1.0-3.0mm.
3. Max. temperature can be reached to 800℃.
4. Break traditional 23kg heavy weight, it's just 9kg light body weight, which makes the welding is more convenient.

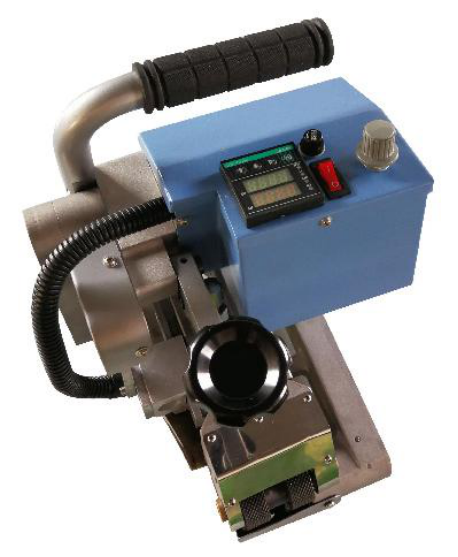

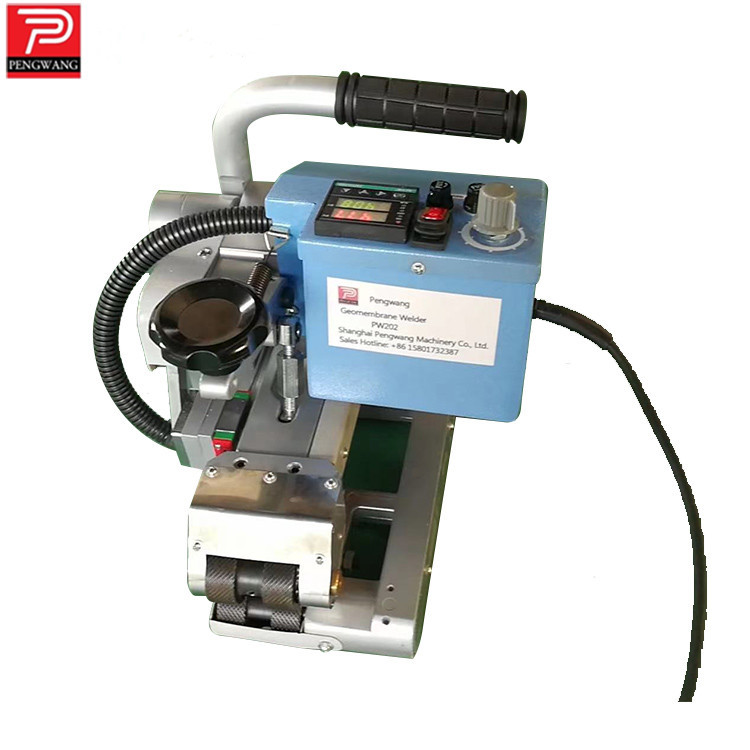

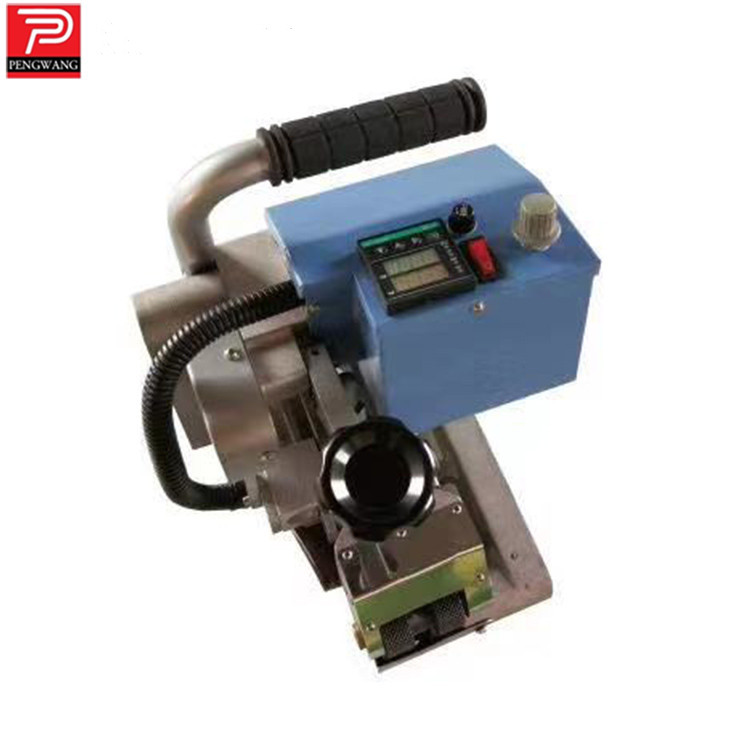

Pengwang PW202 Geomembrane Welder▼
➪Related product: PW102 Digital Display Welder
❒Pengwang--PW102(5kg light body weight) can solve your convenience problem during the welding! Normally, the Minimum weight of Lesiter, DEMETCH, Chinese green model structure is 21kg. Pengwang modified the structure of it, and make it to be 9kg weight. The cost of Pengwang Welder only need 1/6-1/7 of LESITER/ DEMETCH!
➪Related product: PW201 Digital Display Welder
❒Pengwang--PW201(thick material) can solve your convenience problem during the welding thick material--exceeding 2-3mm! Pengwang provides good and stable quality welder! In order to guarantee the quality peformance, Pengwang cooperates with Omron etc spare parts suppliers for temperature control circuit board.The cost of Pengwang Welder only need 1/6-1/7 of LESITER/ DEMETCH!
➪Rated product: PW201D Geomembrane welder
❒Pengwang--PW201D(thick material) can solve your convenience problem during the welding thick material--exceeding 2-3mm! Pengwang provides good and stable quality welder! In order to guarantee the quality peformance, Pengwang cooperates with Omron etc spare parts suppliers for temperature control circuit board.The cost of Pengwang Welder only need 1/6-1/7 of LESITER/ DEMETCH, the biggest difference is PW201D with the speed display screen!
Overvies of the PW201 Geomembrane Welder▼
Overvies of the PW102 Geomembrane Welder▼
Overvies of the PW602 Metabo Double Heating Extruder▼
Overvies of the PW802 Digital Air Hot Air Blower▼
Brand & Type | PW202 Geomembrane welder |
Certificate | CE/RoHS |
Voltage | 220V/110V |
Power | 1800W |
Frequency | 50/60Hz |
Welding Speed | 0.5-5m/min |
Heating temperature | 0-800℃ |
Thickness of material | 1mm-3mm |
Overlap width | 120mm |
Welding width | 17mm×2 |
Interior Cavity | 16mm |
Seam strength | ≥85% base material(tensile resistant in shear direction) |
Net Weight | 9kg |
Insulation class | Class Ⅰ |
Usage | geomembrane welding |
Plug Standard | Euro Plug/ U.S. Plug/British Plug |

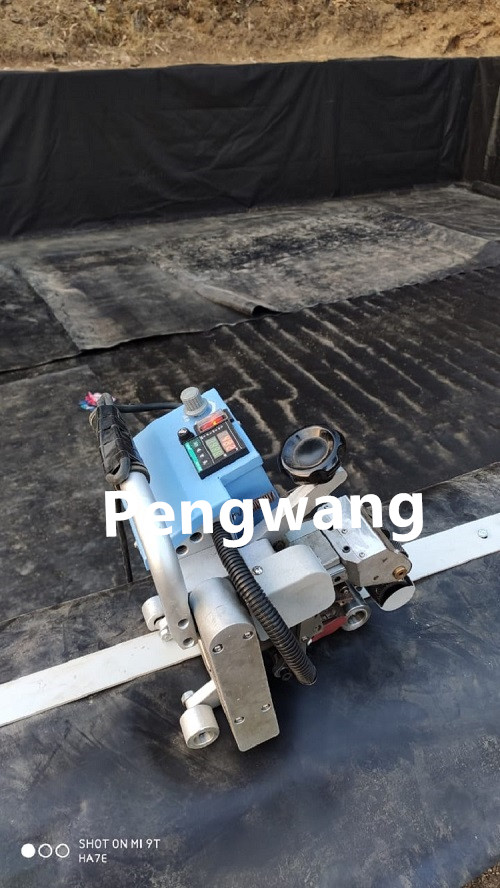

It is used in waterproofing projects, such as tunnel, subway, water convervancy, farming, solid waste landfills, chemical mining industry, sewage treatme nt, roofing and so on.
