PW101 Geomebrane Welder applicable for 0.2-1.5mm material
Power:1200W Voltage: 220V Frequency: 50Hz Welding speed: 0.5-5m/min Heating temperature: 0-500℃ Material thickness: 0.2-1.5mm Welding seal thickness: 16mm×2, Intermediate cavity:12mm Joint width: 100mm N.W.: 5kg; G.W.:9kg Insulation grade: II

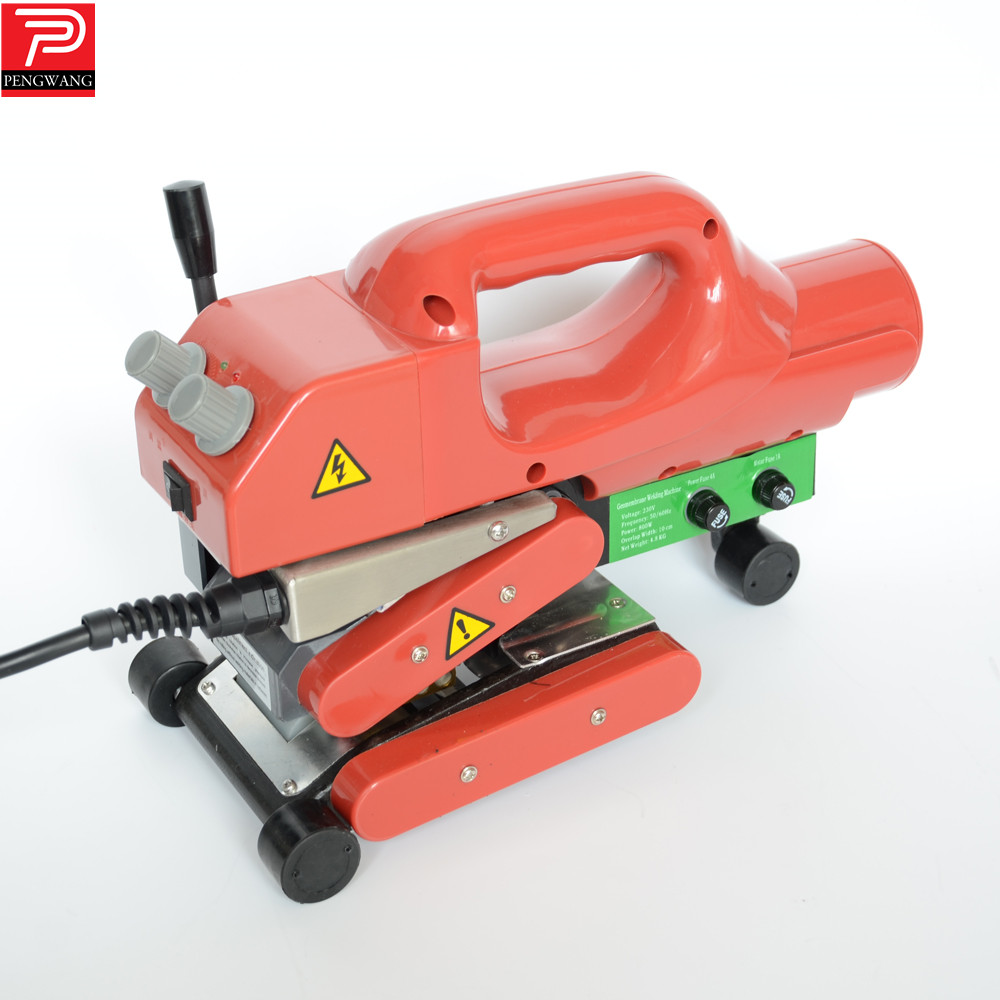

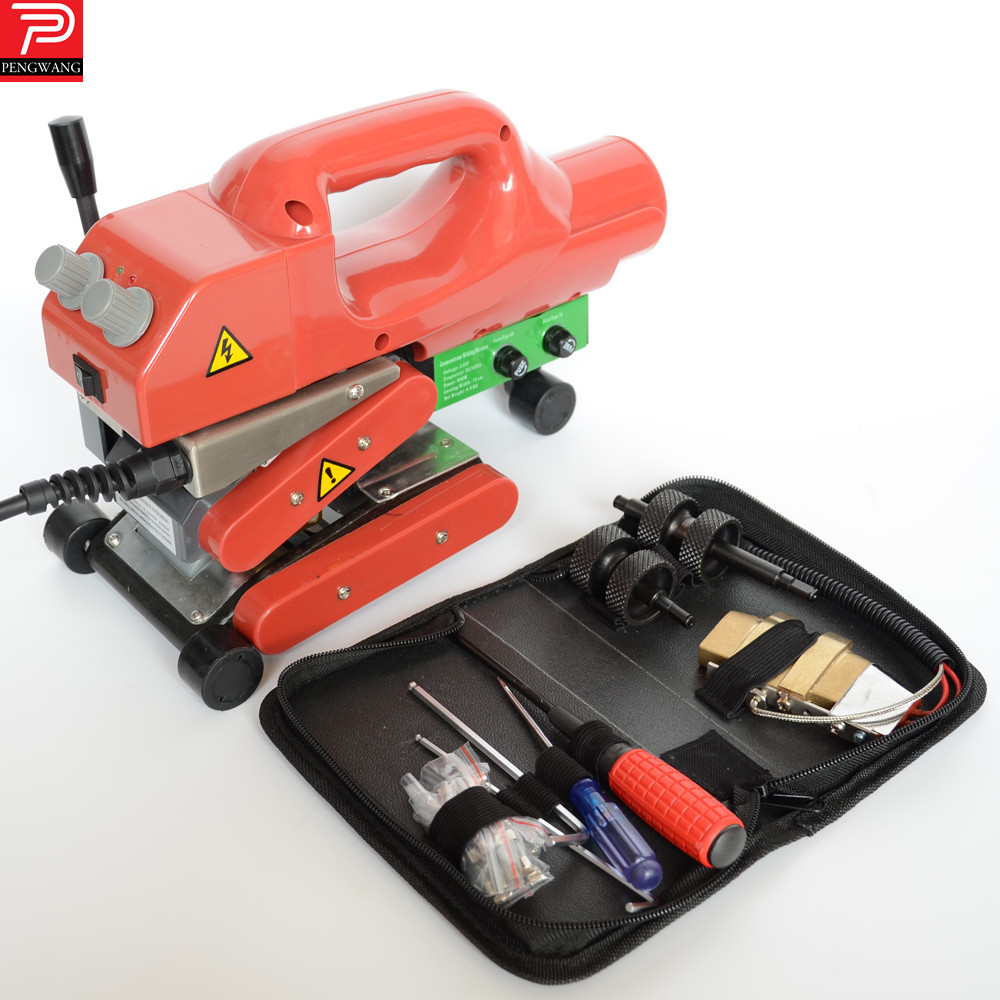

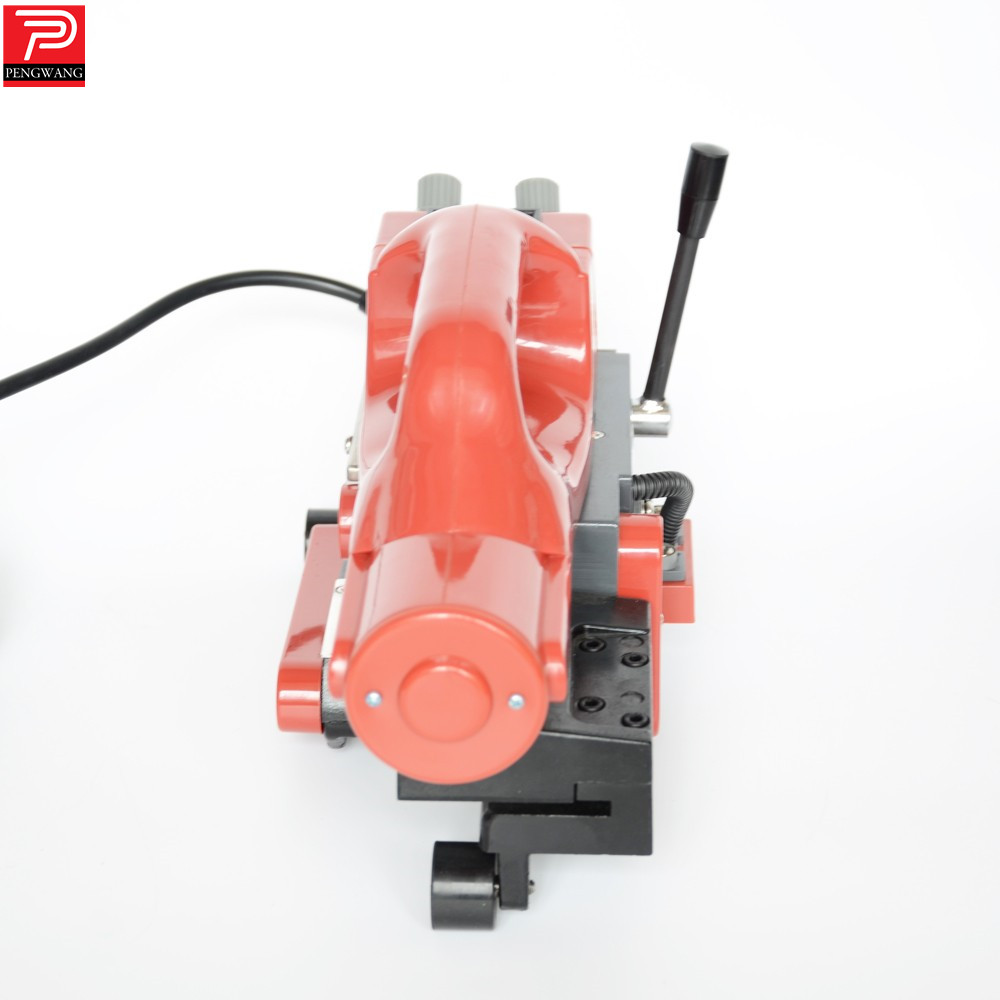

PW101 Portable Hot Wedge Climbing HDPE Gemembrane Seam Welder

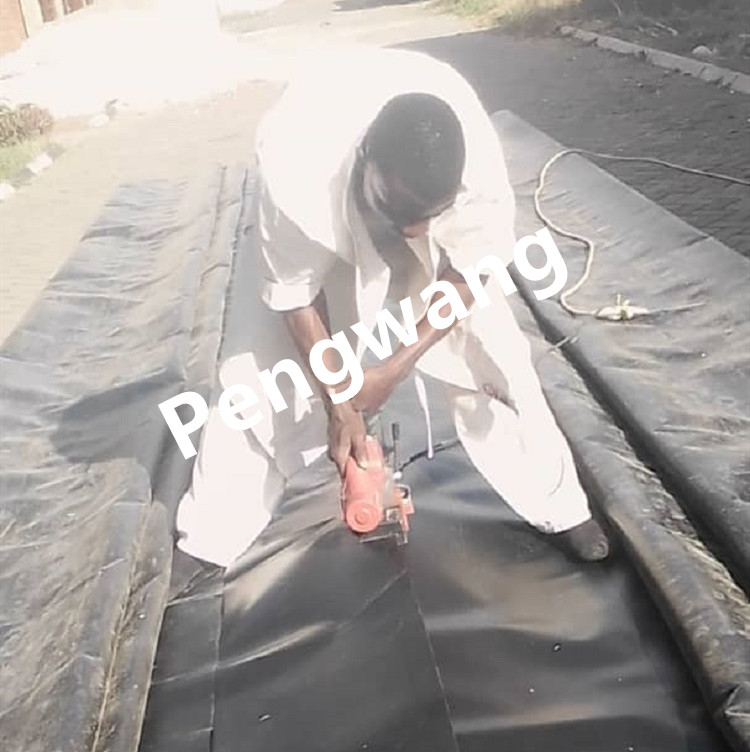

PW101 is one of our newly developed products, which can weld geomembrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP etc. And it is excellent in performance and easy for operating, with high welding speed and good work quality. It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on.
Tips:
1. The silica pressure roller is suitable for welding membrane which the thickness below 1.0mm.
2. The steel pressure roller is suitable for welding membrane which the thickness between 1.0-1.5mm.
3. For welding the materials that may release corrosive gas after hot fusing such as PVC and other similar material, stainless steel hot wedge(optional accessory) is preferred for extending of service life.
Pengwang is your good option of waterproofing geomembrane welderin China, and save your cost from European welder market!

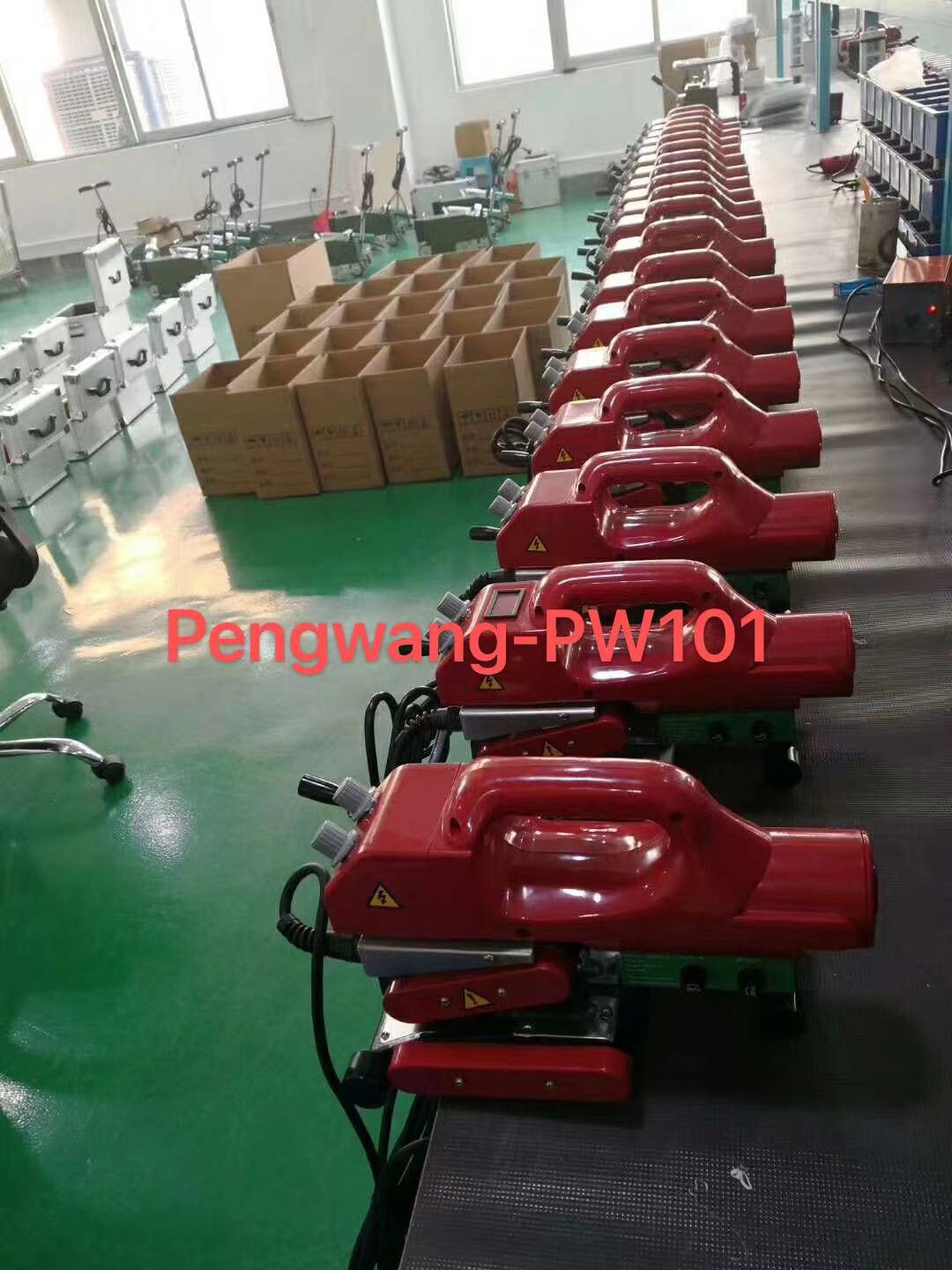

❒Pengwang produces over 12000 geomembrane welder lines every year, so we have mature technology on the structure and system of it!!!!!
❒Pengwang has been manufacturing the geomembrane welder since 2005 year, and we are the leader of the Geomembrane welder in the world. So we have mature technology on plastic welding equipment.
❒Pengwang produced the welder against on the clients` special demands such as logo, label, color, all of them are welcome to customize.
❒Pengwang designed 2 specifications of the red welder, one is standard model and another one is digital display screen. This technology is able to meet the suspension amounts demands.
❒Pengwang manufactured the red geomembrane welder to Peru market which requires the mining project. It required very high standards. That says Pengwang Welder already on the top of the world welder manufacturing.
➪Related product: PW102 Digital Display Welder
➪Related product: PW202 Geomembrane welder
❒PW202 is one of our newly developed products, which can weld geomembrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP etc. And it is excellent in performance and easy for operating, with high welding speed and good work quality. It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on.
Tips:
1. The steel pressure roller is suitable for welding membrane which the thickness between 1.0-3.0mm.
3. Max. temperature can be reached to 800℃.
4. Break traditional 23kg heavy weight, it's just 9kg light body weight, which makes the welding is more convenient.

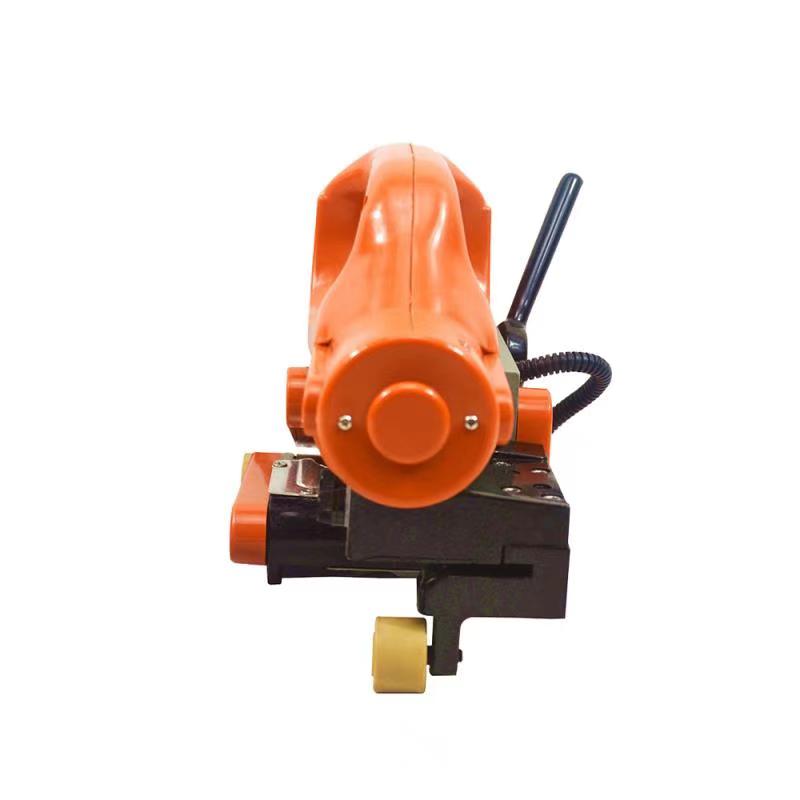

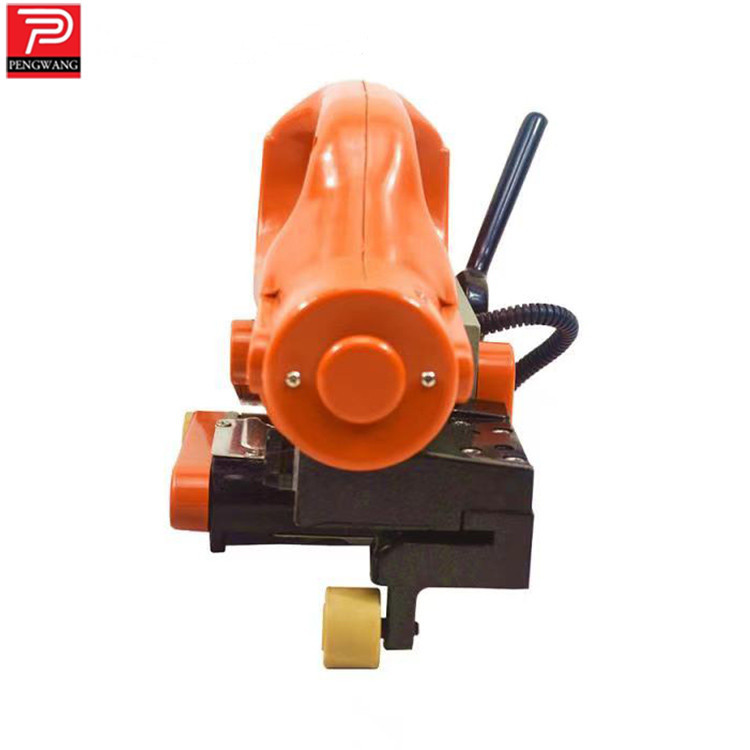

Pengwang PW202 Geomembrane Welder▼
➪Related product: PW900 Geomembrane welder
PW900 Series Thick Geomembrane Welder adopts advanced hot wedge structure, with high power, high speed and strong pressure force; suitable for 1.0-3.0mm thickness hot melt materials such as PE, PVC, HDPE, EVA, PP, TPO. This welder is extensively used in highway/railway tunnels, urban subway, aquaculture, water protection, chemical mining, refuse landfill, sewage treatment, waterproofing projects etc.
Tips:
a. For welding membrane thickness 1.0-3.0 mm with steel pressure roller.
b. For welding the materials that may release corrosive gas after hot fusing such as PVC and other similar material, stainless steel hot wedge (optional accessory) is preferred for extending of service life.
c. Any else customized demands, you can ask us directly, we have a professional technicians team.

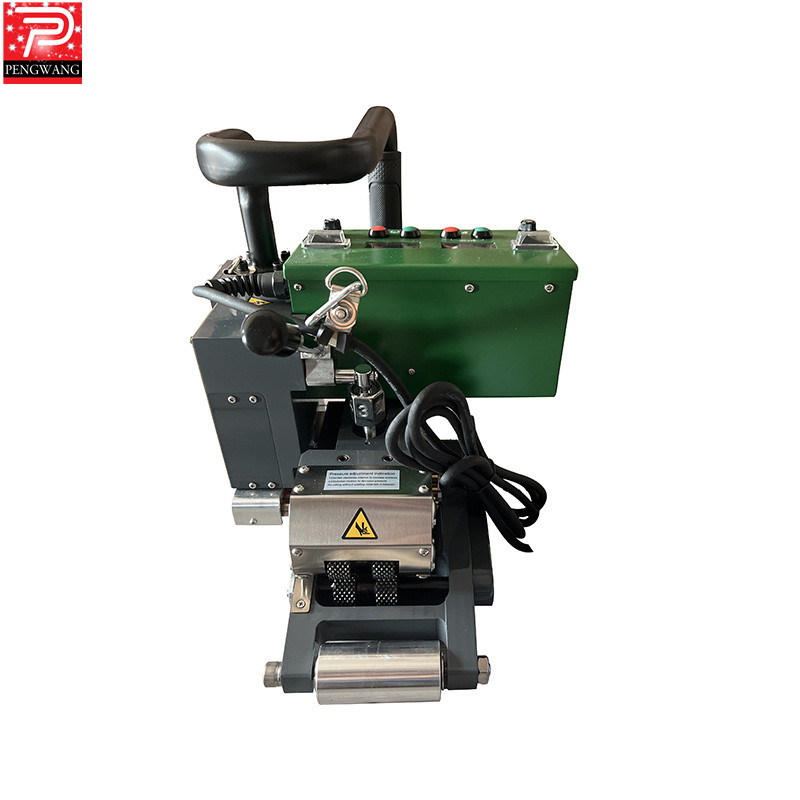

Pengwang PW900 Geomembrane Welder▼
Pengwang PW900D Geomembrane Welder▼
➪Related product: PW602 Metabo Double Heating Extruder
PW602 is kind of automation plastic welding extruder which is independent research and development by Shanghai Pengwang Machinery Co., Ltd. This welder has functions of double independent heating systems, digital display controller, PID automatic thermostat, with PW801 1600W hot air welding gun and Metabo 1600W motor, has high working efficiency and strong drive-force. It can be used for narrow gap welding and corners welding where are hard to reach.
Tips:
a. This welder start to weld when the temperature up to 260°c.
b. This welder is welded with HDPE PE or PP welding rod Φ3.0--Φ4.5mm.
c. Any customized demands, you can ask us directly. We have professional technicians team.
Pengwang PW602A Metabo Double Heating Extruder▼
Brand & Type | PW101 Geomembrane welder |
Certificate | CE/RoHS |
Voltage | 220V/110V |
Power | 800W |
Frequency | 50/60Hz |
Welding Speed | 0.5-5m/min |
Heating temperature | 20-450℃ |
Thickness of material | 0.2mm-1.5mm |
Overlap width | 100mm |
Welding width | 12.5mm×2 |
Interior Cavity | 12.5mm |
Seam strength | ≥85% base material(tensile resistant in shear direction) |
Net Weight | 5kg |
Insulation class | Class Ⅰ |
Usage | geomembrane welding |
Plug Standard | Euro Plug/ U.S. Plug/British Plug |
PW101 is one of our newly developed products, which can weld geomembrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP etc. And it is excellent in performance and easy for operating, with high welding speed and good work quality. It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on.
