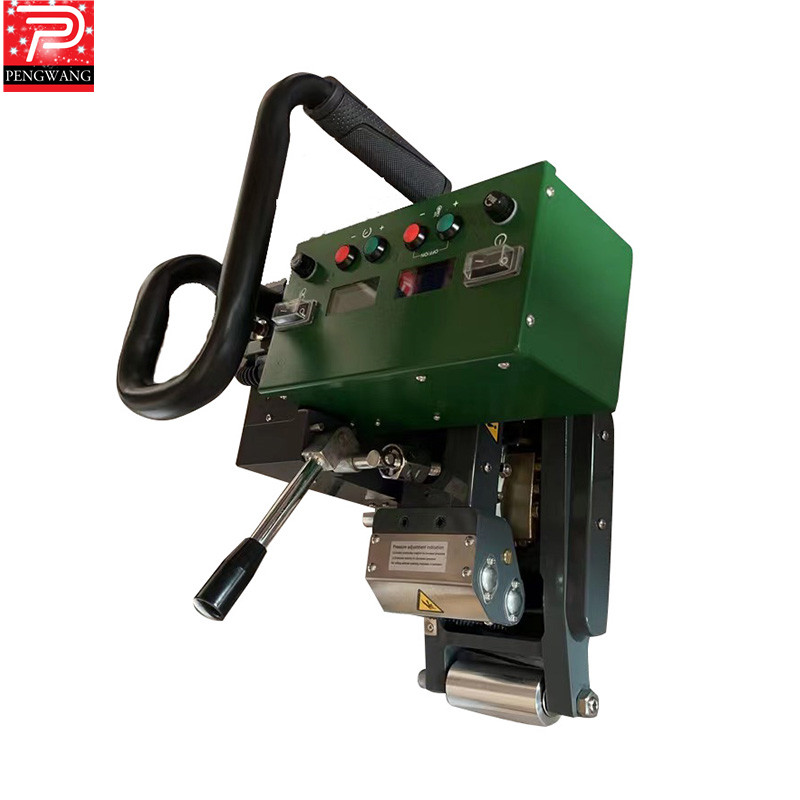

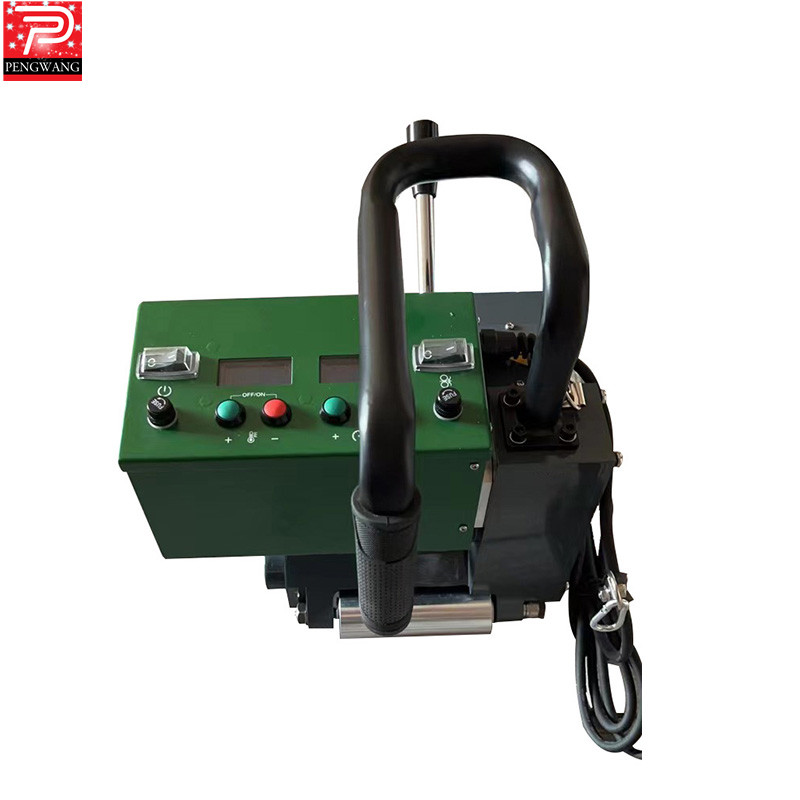

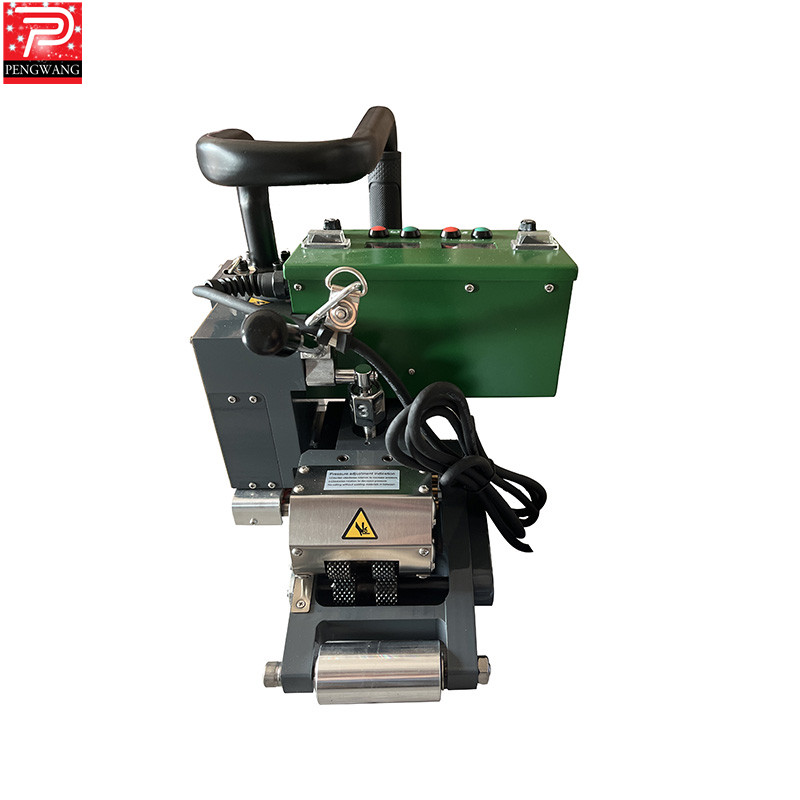

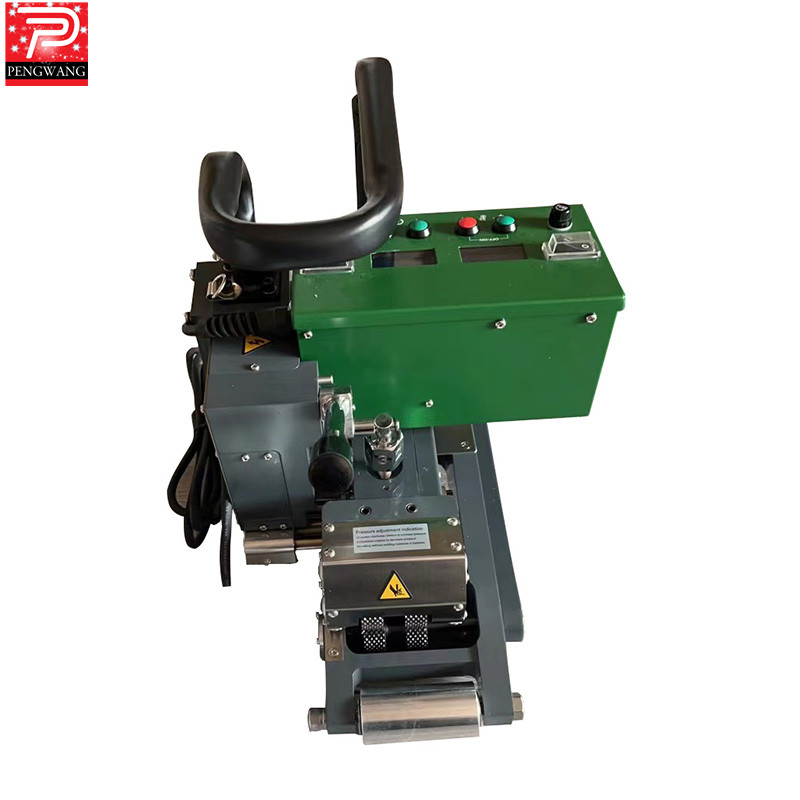

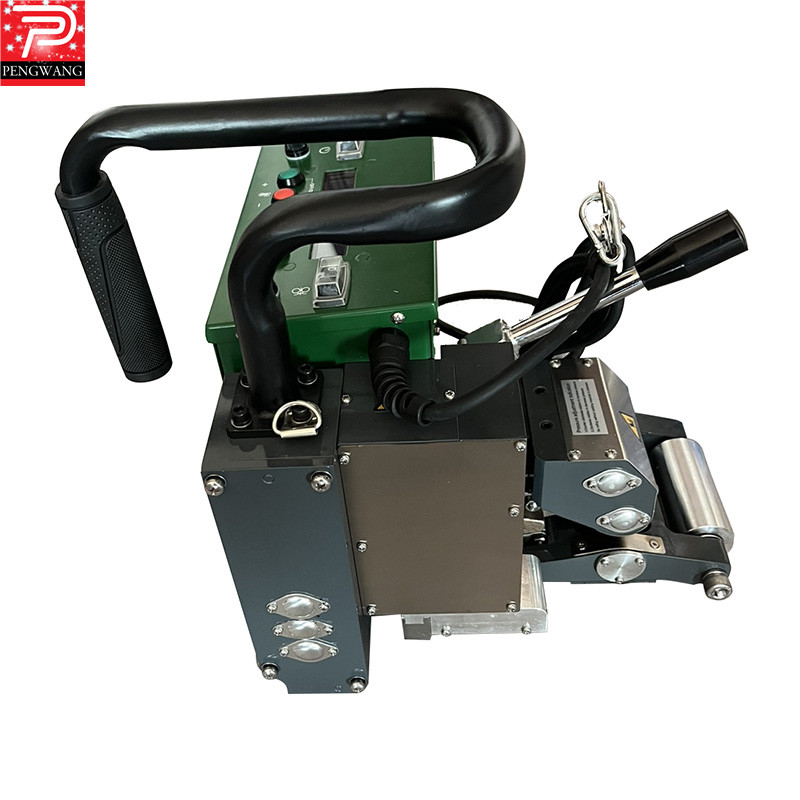

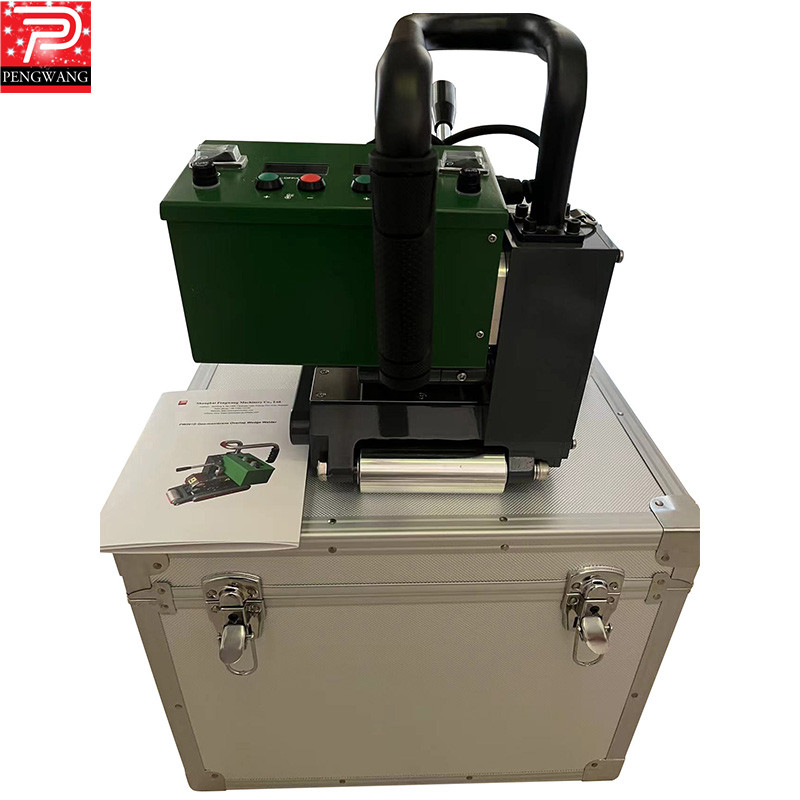

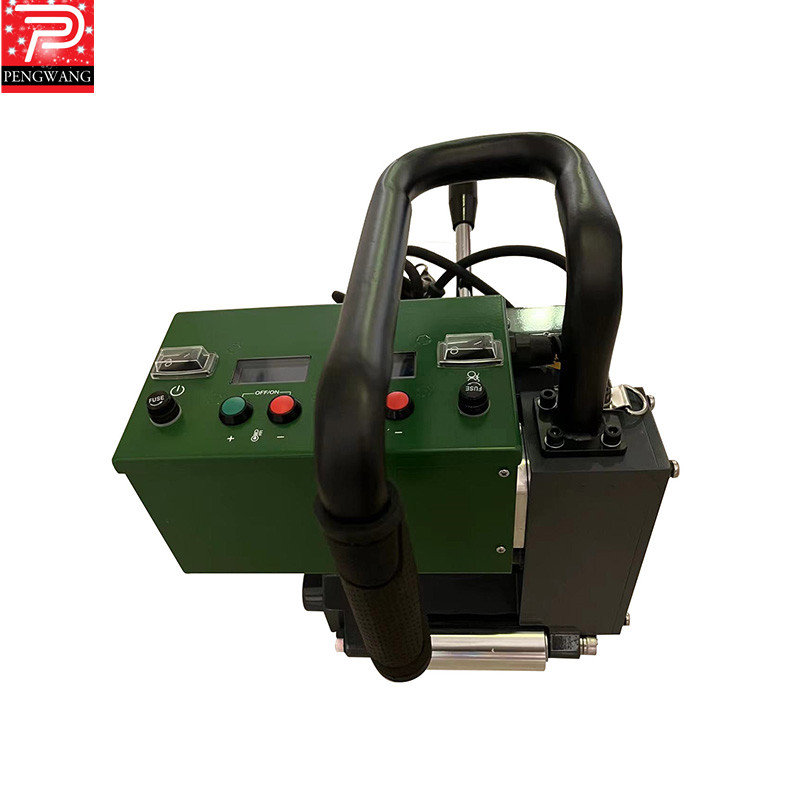

Pengwang PW900D Geomebrane Welder applicable for 1-3mm material
Power:1800W Voltage: 220V Frequency: 50Hz Welding speed: 0.5-5m/min Speed display screen Heating temperature: 0-600℃ Material thickness: 1-3mm Welding seal thickness: 17mm×2, Intermediate cavity:16mm Seam strength: ≥85% base material (tensial resistance in share direction Joint width: 120mm N.W.: 9kg; G.W.:14kg Insulation grade: I
PW900D Series Thick Geomembrane Welder adopts advanced hot wedge structure, with high power, high speed and strong pressure force; suitable for 1.0-3.0mm thickness hot melt materials such as PE, PVC, HDPE, EVA, PP, TPO. This welder is extensively used in highway/railway tunnels, urban subway, aquaculture, water protection, chemical mining, refuse landfill, sewage treatment, waterproofing projects etc.
Tips:
a. For welding membrane thickness 1.0-3.0 mm with steel pressure roller.
b. For welding the materials that may release corrosive gas after hot fusing such as PVC and other similar material, stainless steel hot wedge (optional accessory) is preferred for extending of service life.
c. Any else customized demands, you can ask us directly, we have a professional technicians team.
d. With the temperature display and speed display screen at the same time.
➪Related product: PW900 Geomembrane welder
Tips:
1. The steel pressure roller is suitable for welding membrane which the thickness between 1.0-3.0mm.
3. Max. temperature can be reached to 600℃.
4. It's our highest quality model so far.

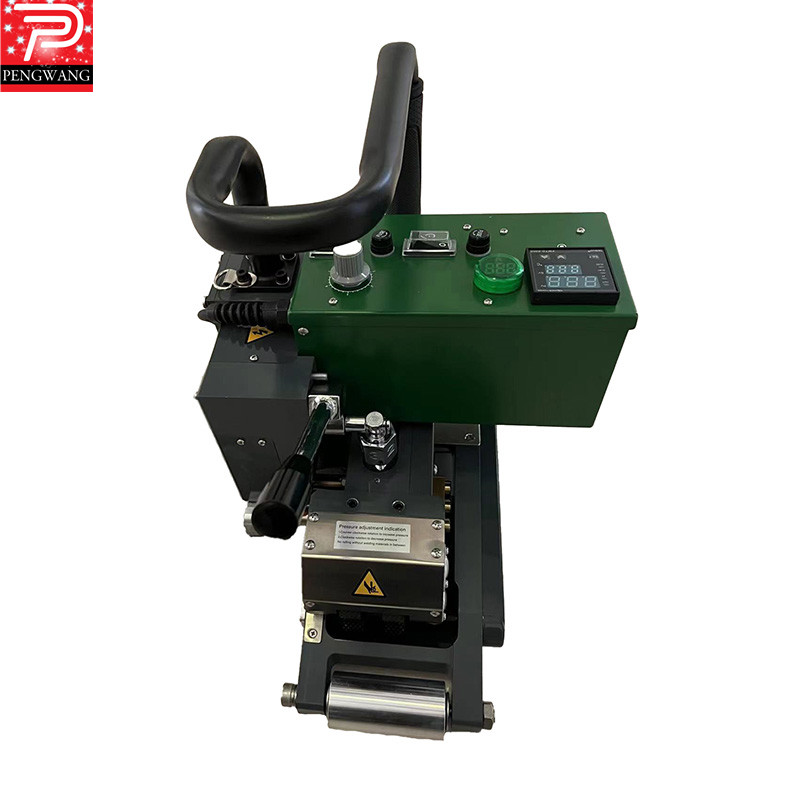

➪Related product: PW102 Digital Display Welder
Tips:
1. For welding membrane with thickness below 1.0 mm, the silica pressure roller is the suitable choice.
2. For welding membrane with thickness above 1.0mm, the steel pressure roller is the best choice.
3. Any customized demands, you can ask us directly. We have professional technicians team.

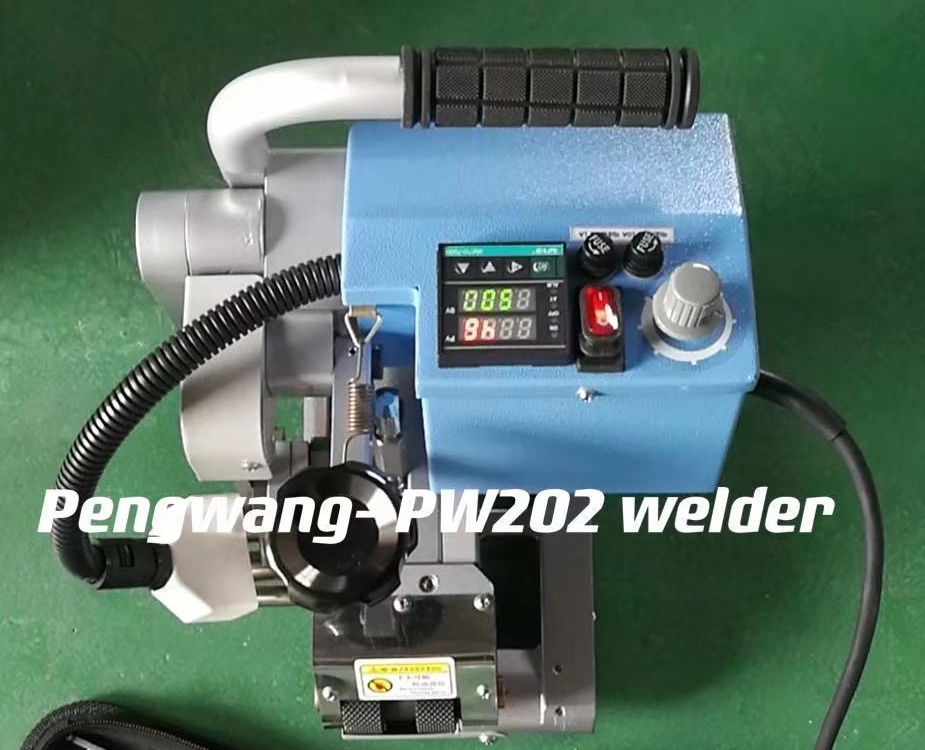

➪Rated product: PW202 Geomembrane welder
1. The steel pressure roller is suitable for welding membrane which the thickness between 1.0-3.0mm.
2. Max. temperature can be reached to 800℃.
3. Break traditional 23kg heavy weight, it's just 9kg light body weight, which makes the welding is more convenient.
Pengwang PW202 Geomembrane Welder▼
Pengwang PW102 Geomembrane Welder▼
Pengwang PW602A Metabo Double Heating Extruder▼
Model | PW900D |
Power | 1800W |
Voltage | 220/110V |
Frequency | 50/60Hz |
Welding speed | 0.5-5m/min Speed display screen |
Heating temperature | 0-600℃ |
Power | 30W |
Material thickness | 1-3mm |
Welding seal thickness | 17mm×2 |
Intermediate cavity: | 16mm |
Seam strength | ≥85% base material (tensial resistance in share direction) |
Joint width | 120mm |
N.W. | 9kg |
G.W. | 14kg |
Insulation grade | I |

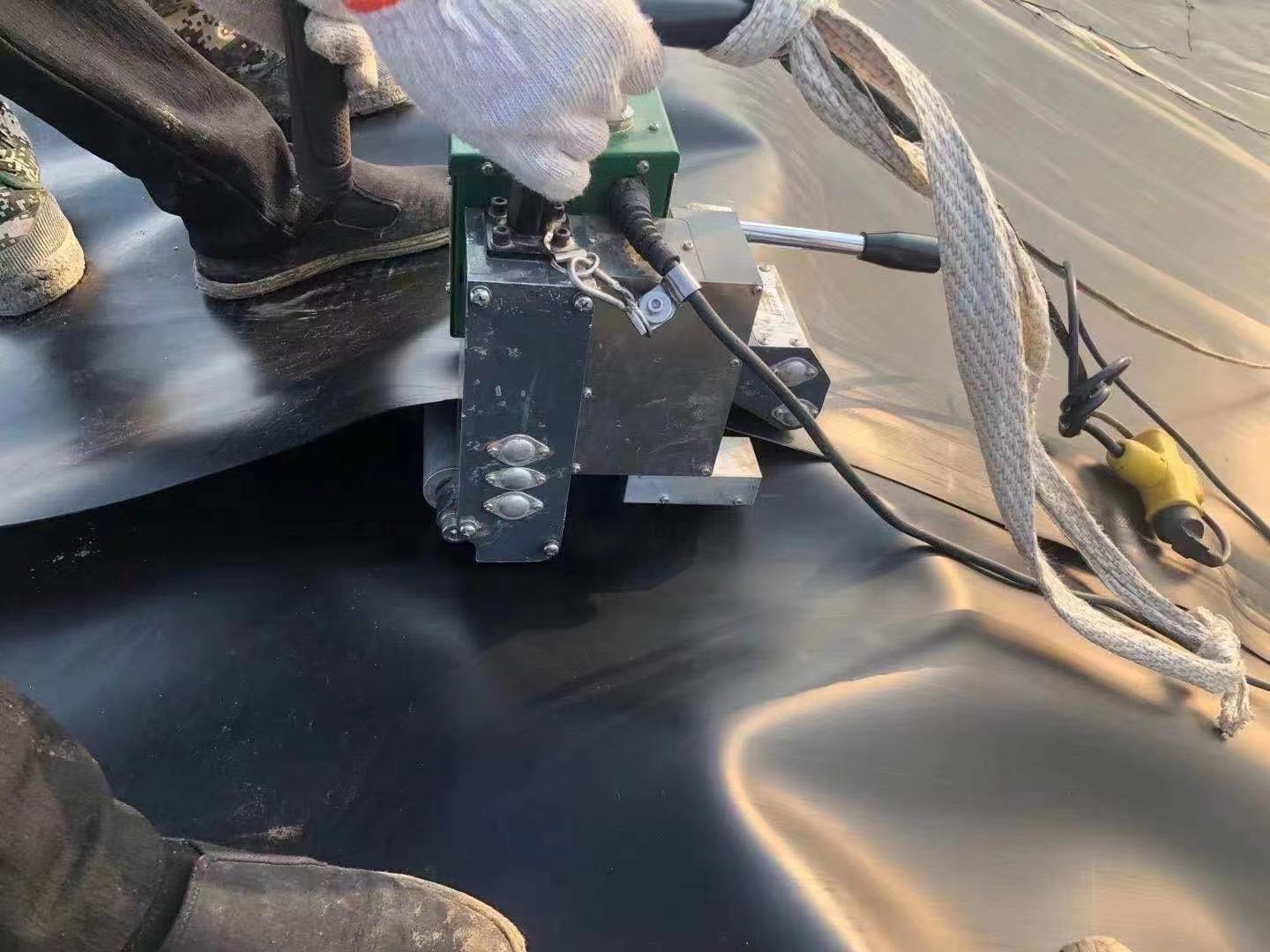

Geomembrane Welder is specially for welding HDPE, LDPE, EVA, PVC, PP thermoplastic materials, which can be used in waterproofing projects, such as tunnels, subway, water conservancy, farming, solid waste landfills, chemical mining, sewage, roofing-- 1-3mm thick material.
