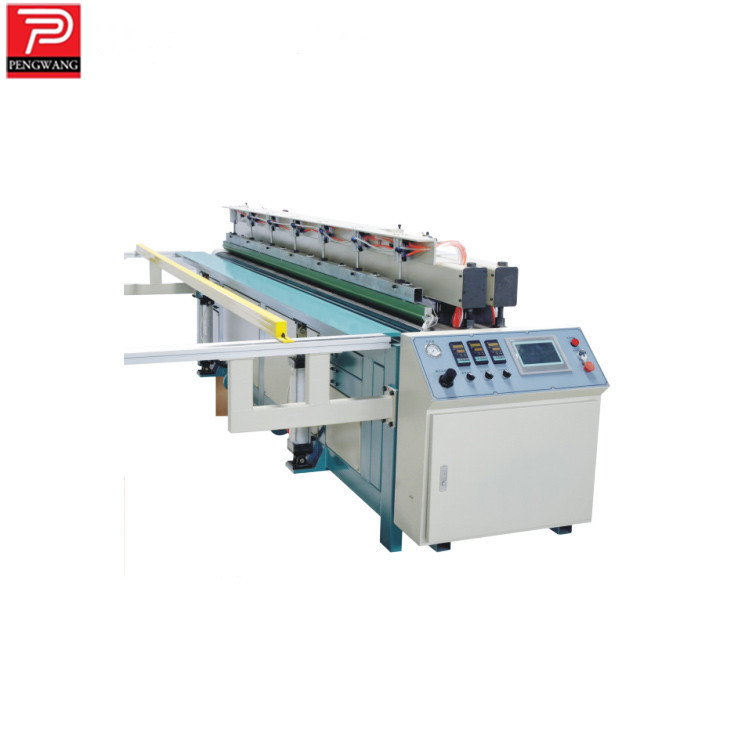

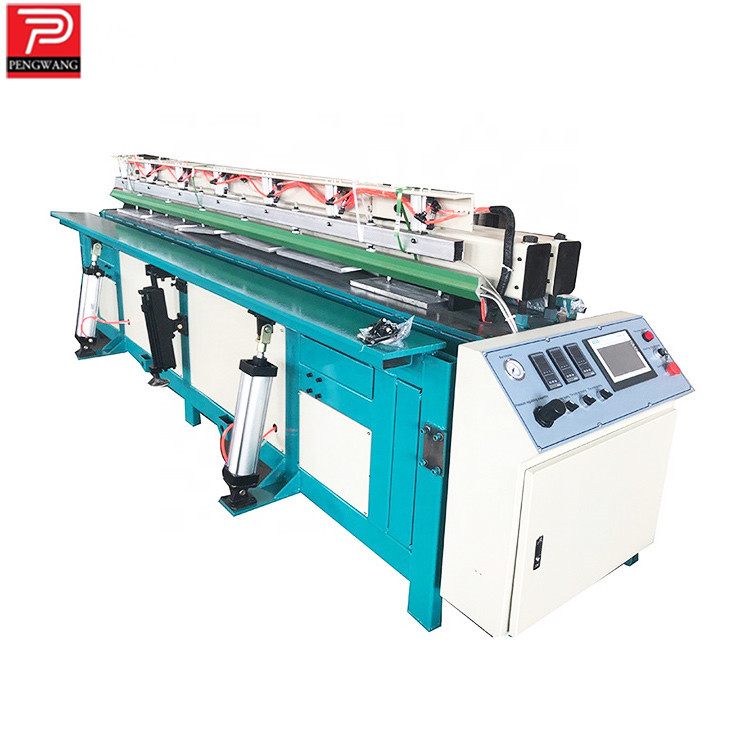

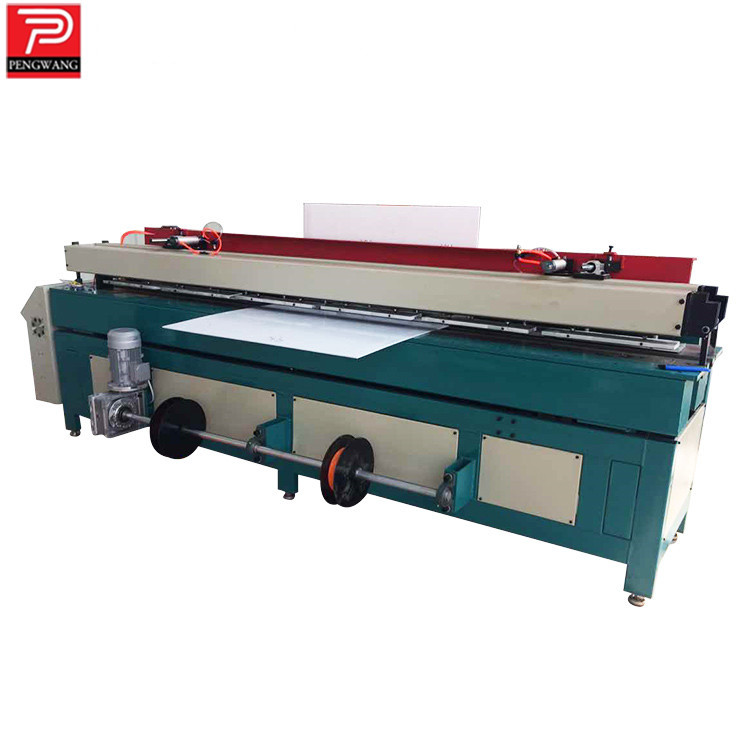

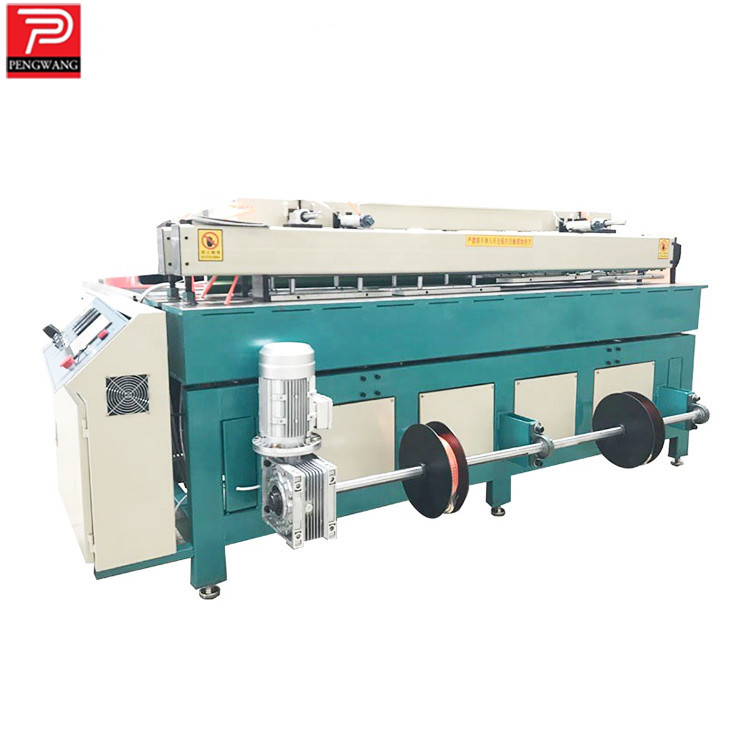

Item:PW-PZ3000 Combined Bending And Butt Welding Equipment Weldable sheet thickness:3.0-25.0mm Max.working length:3000mm Bending angle(°):0-100° Roll circle diameter min:500mm Air pressure(kg.f/cm2):6.0-8.0 The rated voltage:380V,50/60Hz Rated current:60A Bending heating power:9kW Welding heating power:6kW Drum institutions motor power:1.5kW External dimensions:3850*1100*1100mm Packing dimensions:3950*1230*1220mm N.W:1400kgs G.W:1500kgs
PW series Bending & Butt Fusion Equipment are suitable for welding thermoplastic sheets made of HDPE, PP, PVC, PVDF.The machine is designed according to DVS 2208, and can operate in compliance with the DVS 2207.
Welding Function:

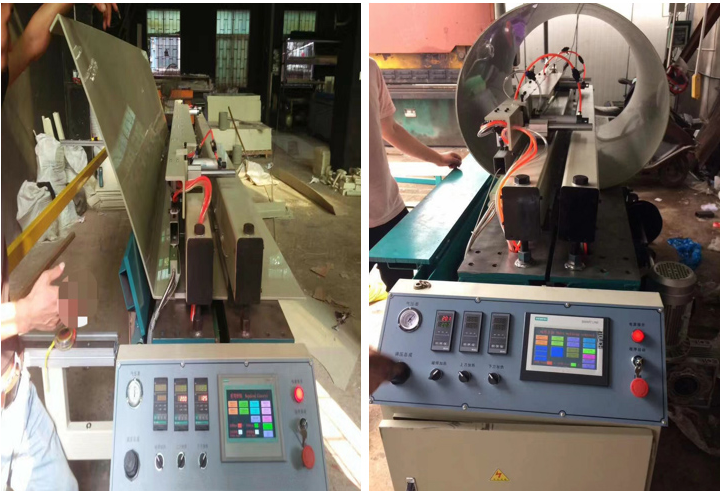

Horizontal weld & round (rolling) weld. Rolling the circular minimum size is 500mm, the bigger circular unlimited.
Bending Function:
Bender plastic plate from 2-100 degree.
Versatile use | Welding function and bending function are both available in our model |

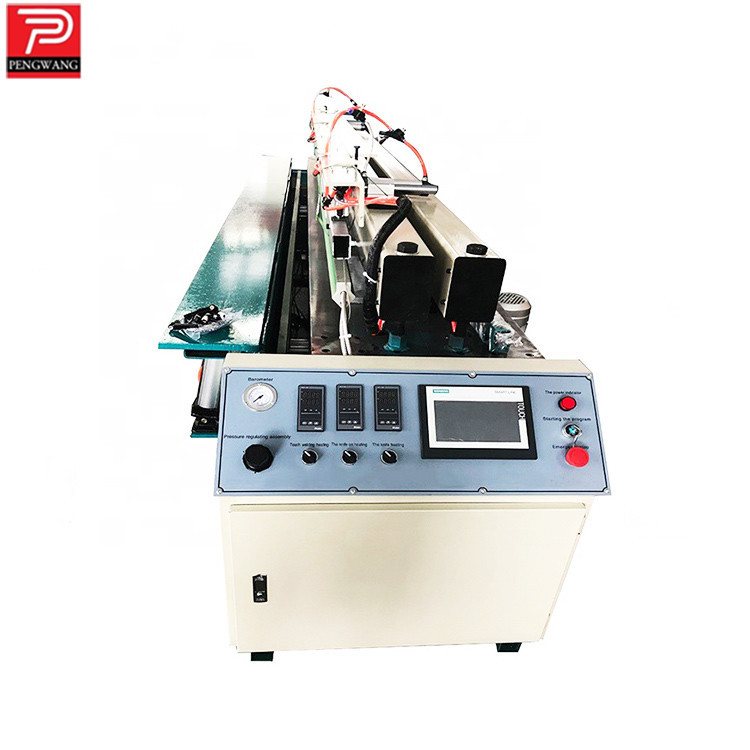

Efficient | Siemens control system and touch screen control mode make the control efficient and accurate |
Easy to use | Our strong point are to design easy-to-use equipments, not complicated ones,you can finish every function within 5 steps with our model. |
Wide applicability | Our model is suitable for all types of thermo plastic sheet (PP, PE, HDPE, PVDF, PVC, PPN), with material thickness ranges from 3 mm to 30 mm. Welding thickness can up to 50 or 60mm according to customers' request |
Stable performance | With most-to-up technology and top designers we successfully design and manufacture for customers. The plates processed by our model have good-looking appearance and the angle is very strong. |
Easy-to-maintain | It's easy to replace all consumable parts, most of them can be replaced within 2 minutes |

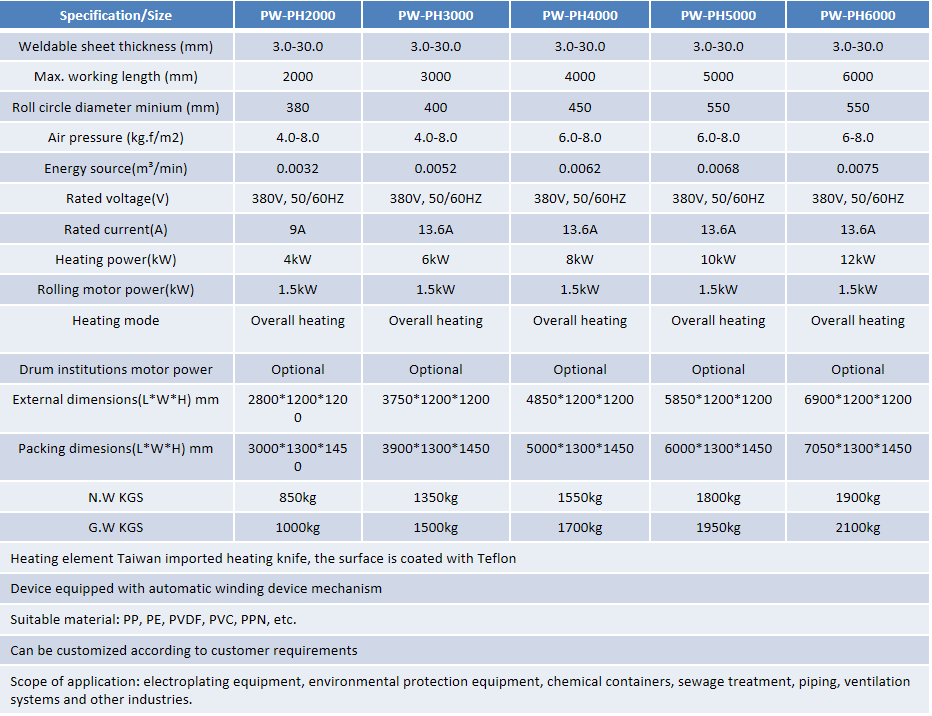

Specifications内容
