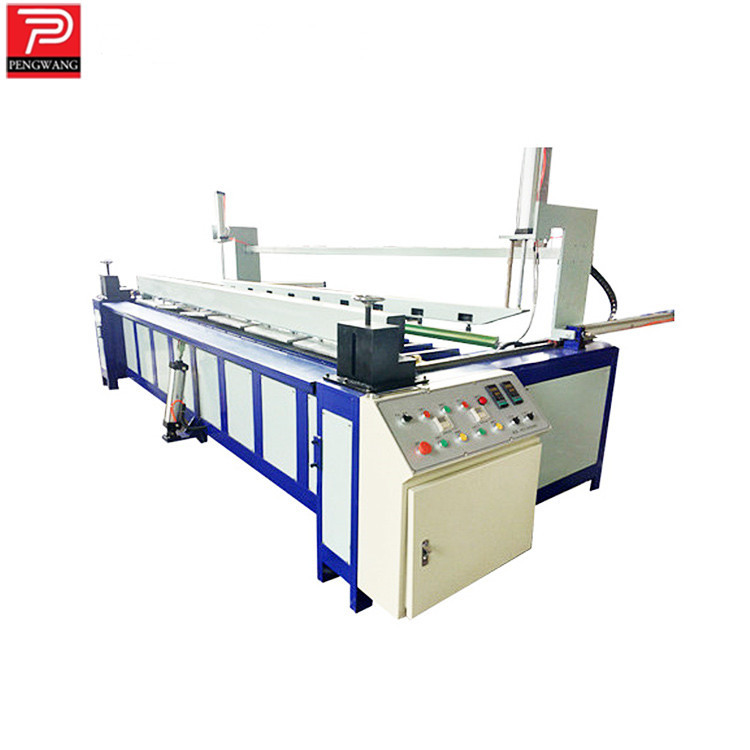

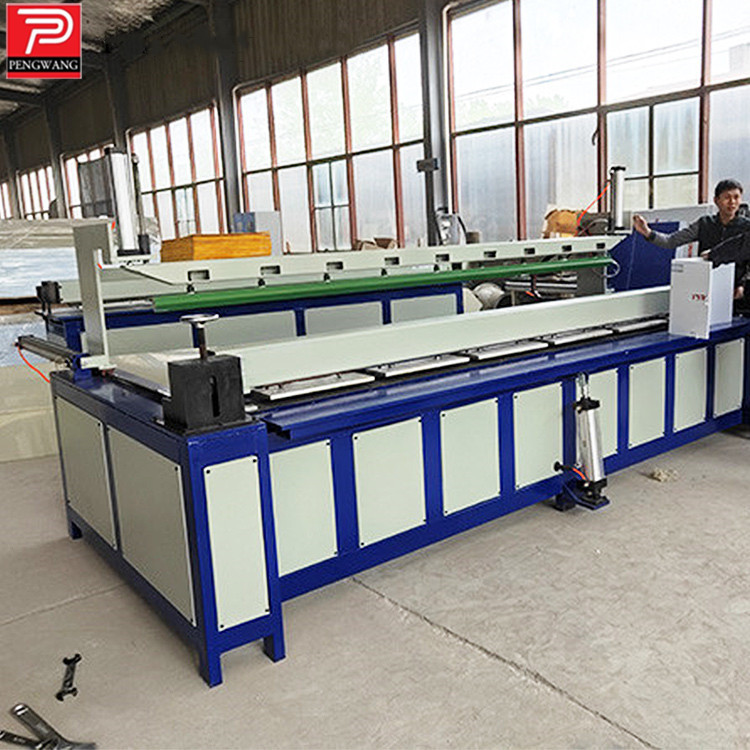

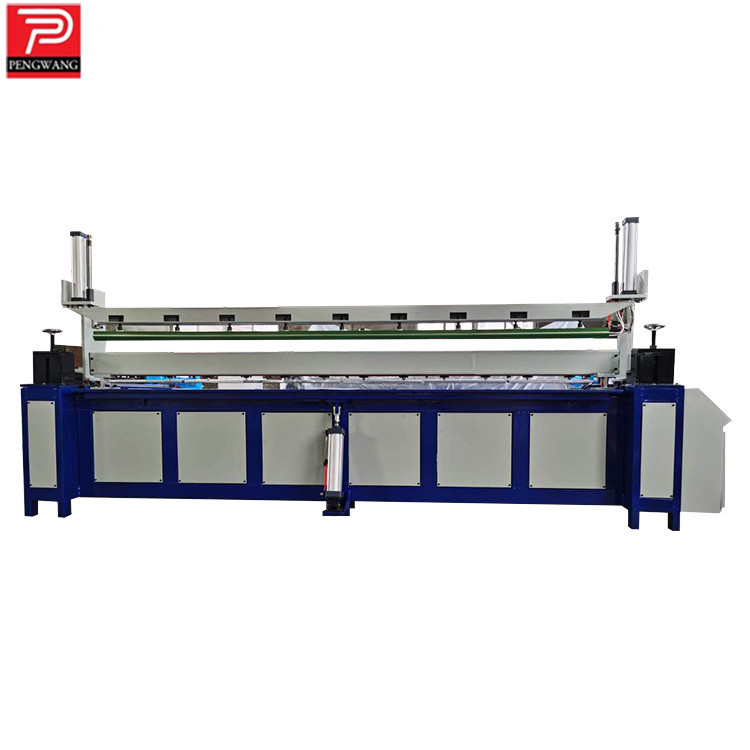

PW-ZW4000 Plastic Sheet Bending Equipment

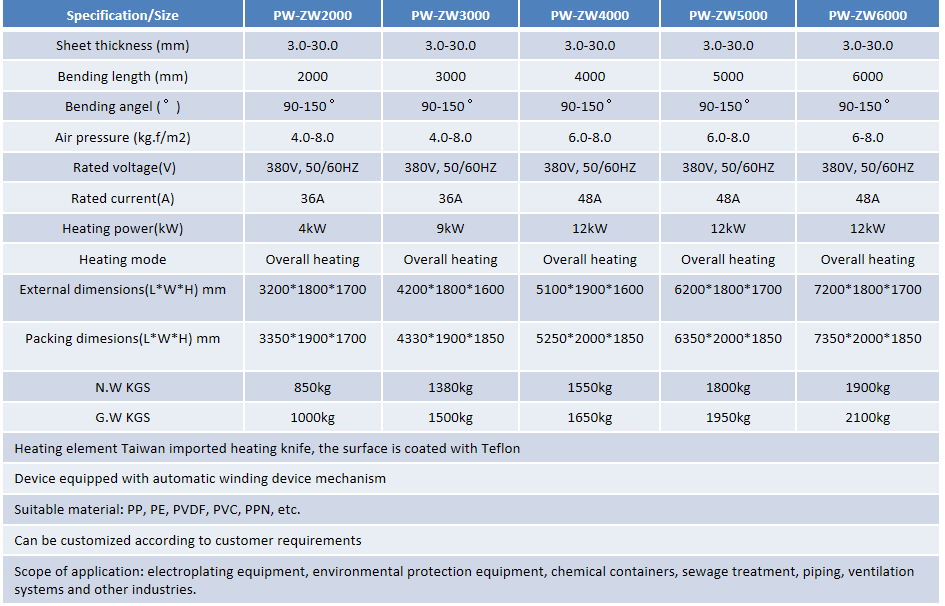

Item:PW-ZW4000 Plastic Sheet Bending Device Sheet Thickness:3.0-30.0mm Bending length:4000mm Bending Angle:40-150℃ Air pressure(kg.f /cm2):6.0-8.0 Rated voltage:380V50/60Hz Heating power:12kw Rated Current:48A External dimensions:5100*1900*1600mm Packing dimensions:5250*2000*1850mm N.W:1550kgs G.W:1650kgs
PW series Sheet Bending Welding Machine are suitable for welding thermoplastic sheets made of HDPE, PP, PVC, PVDF. It is designed according to DVS 2208, and can operate in compliance with the DVS 2207.
MAIN FUNCTIONS
Welding function:
Horizontal weld & round (rolling) weld. Rolling the circular minimum size is 500mm, the bigger circular unlimited.
Bending function:
Bender plastic plate from 2-100 degree.
Versatile use | Welding function and bending function are both available in our model |
Efficient and accurate | Siemens control system and touch screen control mode make the control efficient and accurate |
Easy to use | Our strong point are to design easy-to-use equipments, not complicated ones, you can finish every function within 5 steps with our model. |
Wide applicability | Our model is suitable for all types of thermo plastic sheet (PP, PE, HDPE, PVDF, PVC, PPN), with material thickness ranges from 3 mm to 30 mm. Welding thickness can up to 50 or 60mm according to customers' request |
Stable performance | With most-to-up technology and top designers we successfully design and manufacture for customers. The plates processed by our model have good-looking appearance and the angle is very strong. |
Easy-to-maintain | It's easy to replace all consumable parts, most of them can be replaced within 2 minutes |
