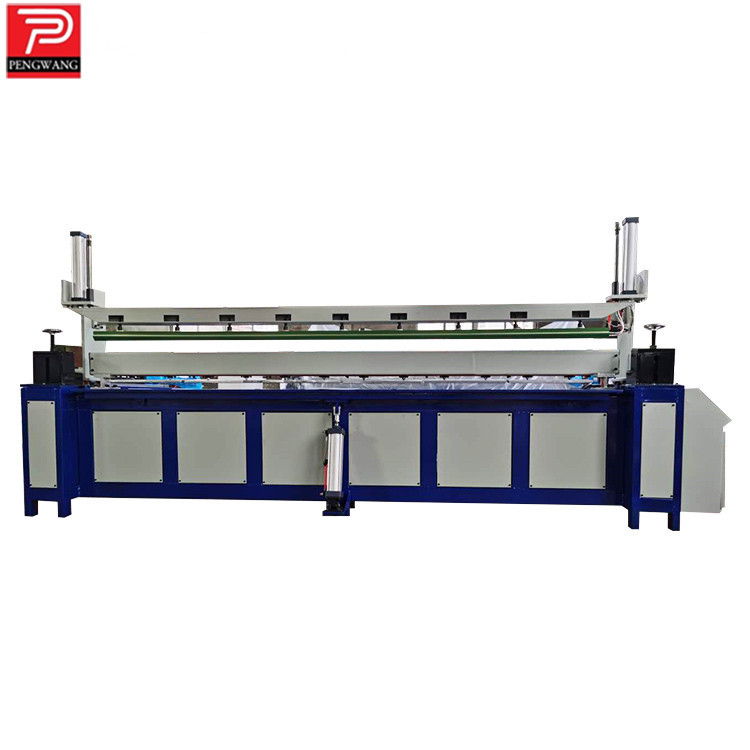

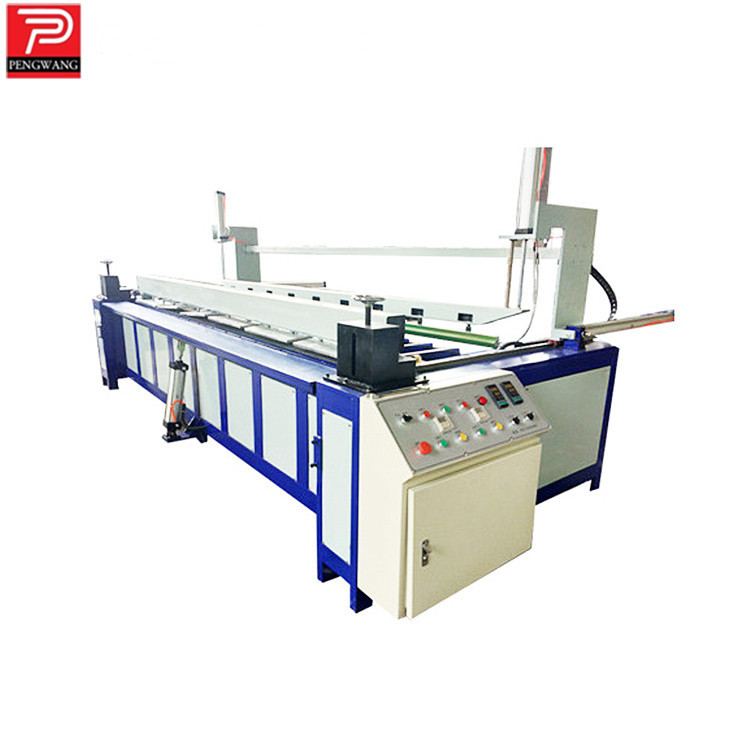

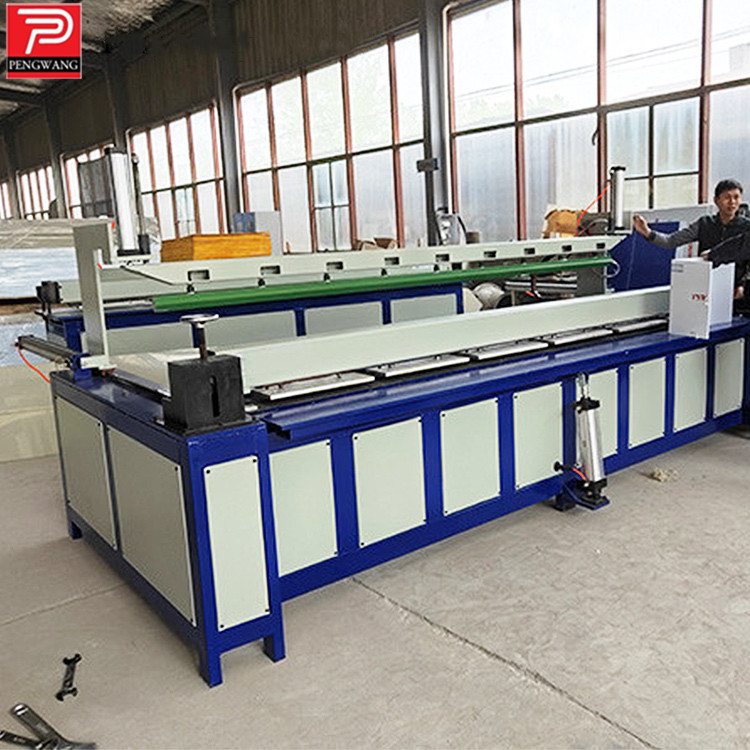

ur_here home > Products > Sheet bending welding machine > PW-ZW3000 Plastic Sheet Bending Machine

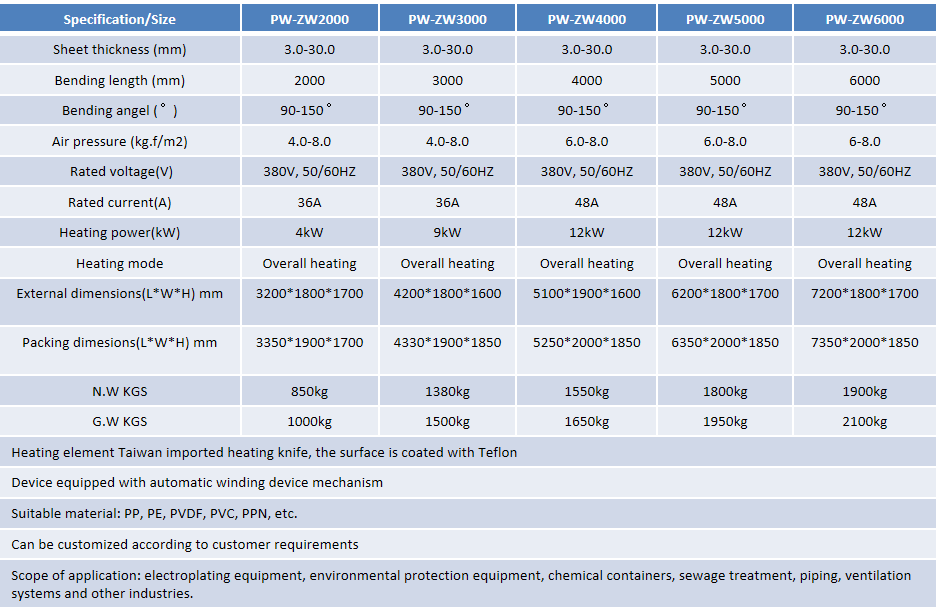

Item:PW-ZW3000 Sheet Bending Equipment Sheet Thickness:3.0-30.0mm Bending length:3000mm Bending Angle:40-150 ℃ Air pressure(kg.f /cm2)：6.0-8.0 Rated voltage:380V50/60Hz Heating power:9kW Rated Current:36A External dimensions:4200*1800*1600mm Packing dimensions:4330*1900*1850mm N.W:1380kgs G.W:1500kgs
PW series Sheet Bending Welding Machine are suitable for welding thermoplastic sheets made of HDPE, PP, PVC, PVDF. The machine is designed according to DVS 2208, and can operate in compliance with the DVS 2207.
Versatile use | Welding function and bending function are both available in our model |
Efficient and accurate | Siemens control system and touch screen control mode make the control efficient and accurate |
Easy to use | Our strong point are to design easy-to-use equipments, not complicated ones, you can finish every function within 5 steps with our model. |
Wide applicability | Our model is suitable for all types of thermo plastic sheet (PP, PE, HDPE, PVDF, PVC, PPN), with material thickness ranges from 3 mm to 30 mm. Welding thickness can up to 50 or 60mm according to customers' request |
Stable performance | With most-to-up technology and top designers we successfully design and manufacture for customers. The plates processed by our model have good-looking appearance and the angle is very strong. |
Easy-to-maintain | It's easy to replace all consumable parts, most of them can be replaced within 2 minutes |
