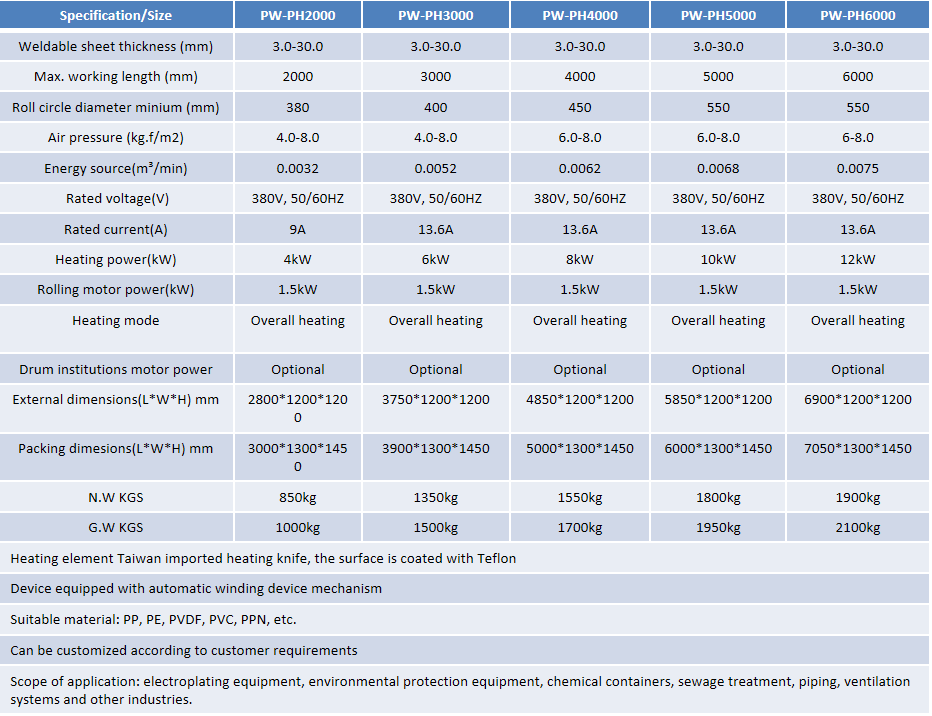

Item:Themoplastic Sheet Butt Fusion Size:PW-PH4000 Weldable sheet thickness:3.0-30.0 Max.working length:4000mm Roll circle diameter minimum:450mm Air pressure(kg.f /cm2):6.0-8.0 Energy source(m3/min):0.0062 The rated voltage:380V,50/60Hz Rated current:13.6A Heating Power:8kW Power of Rolling Motor:1.5kW Machine(LxWxH):3750*1200*1200mm MEAS (LxWxH):3900*1300*1450mm N.W KGS:1350Kgs G.W KGS:1500Kgs
PW series Butt Fusion Welding Machine are suitable for welding thermoplastic sheets made of HDPE, PP, PVC, PVDF.The machine is designed according to DVS 2208, and can operate in compliance with the DVS 2207.
Welding Function:

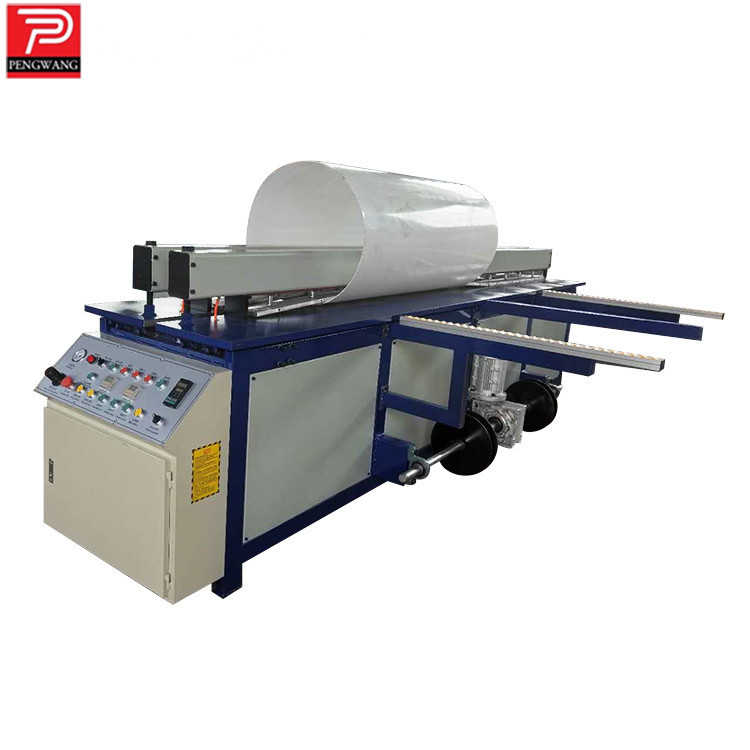

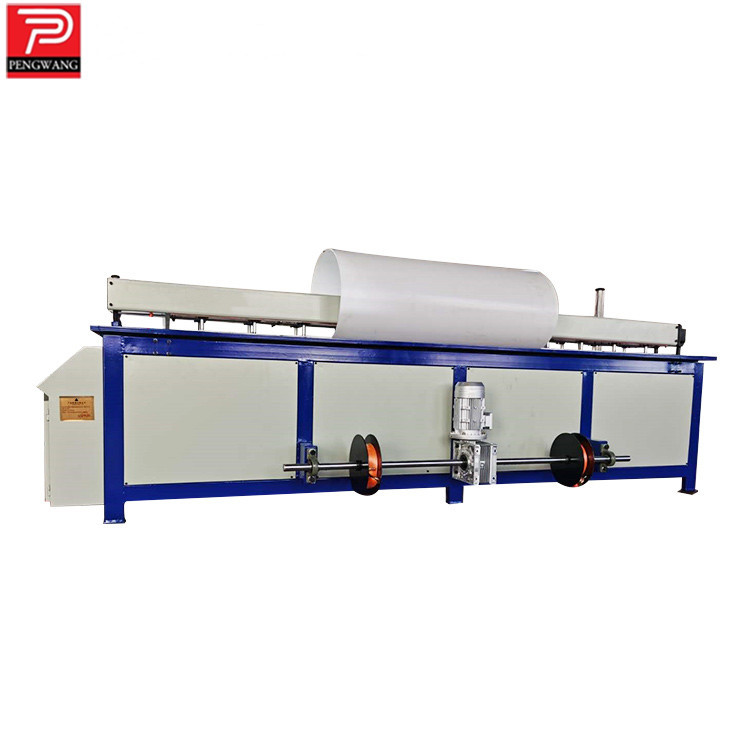

Horizontal weld & round (rolling) weld. Rolling the circular minimum size is 500mm, the bigger circular unlimited.
Bending Function:
Bender plastic plate from 2-100 degree.
Versatile use | Welding function and bending function are both available in our model |
Efficient | Siemens control system and touch screen control mode make the control efficient and accurate |
Easy to use | Our strong point are to design easy-to-use equipments, not complicated ones,you can finish every function within 5 steps with our model. |
Wide applicability | Our model is suitable for all types of thermo plastic sheet (PP, PE, HDPE, PVDF, PVC, PPN), with material thickness ranges from 3 mm to 30 mm. Welding thickness can up to 50 or 60mm according to customers' request |
Stable performance | With most-to-up technology and top designers we successfully design and manufacture for customers. The plates processed by our model have good-looking appearance and the angle is very strong. |
Easy-to-maintain | It's easy to replace all consumable parts, most of them can be replaced within 2 minutes |
